Super Quiet Long Run 6 kW Diesel Generator

Current lead times are 3 weeks.

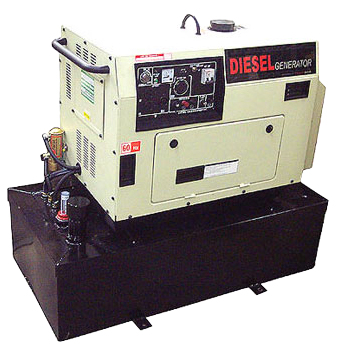

Super Quiet Long Run 6 kW Diesel Generator - Runs 150 hours on a fuel tank. This Super Quiet Long Run Diesel Generator is THE LONGEST RUNNING DIESEL GENERATOR WE HAVE EVER SEEN. You'll love the fuel savings!

150 Hour Run-Time
Longest running diesel generator.

This unit features a 4 stroke, direct injection 10 HP diesel engine, sound proof enclosure, voltmeter, main line circuit breaker, deluxe receptacle panel, 120/240 V output, low oil indicator light, lifting eye hook, 50 gallon subbase fuel tank with fuel gauge, automatic voltage regulation and electric start.

Options	Price
100 Gallon Fuel Tank (295 Hour Run-Time)	+ $295
250 Gallon Fuel Tank (735 Hour Run-Time)	+ $650

Generator

Power Single-Phase			---
Is this unit suitable for powering sensitive electronic equipment like a laptop computer?			Yes
Maximum Output			6,500 watts
Continous Output			6,000 watts
Load Amperage at 120 volts			---
Maximum Load			54 Amps
Continous Load			50 Amps
Load Amperage at 240 volts			---
Maximum Load			27 Amps
Continous Load			25 Amps

Engine

Power			10 HP
Engine Displacement			418cc
Oil Capacity			Approx. 1.7 Qts
Cylinder Block			Aluminum w/ Cast Iron Sleeve
Bore & Stroke			3.39" x 2.76"
Exhaust Outlet			1 1/4" OD Muffler Outlet
Fuel			Diesel
Cooling System			Air-cooled
Low Oil Pressure Shutdown			Standard
Starting System			Electric

Consumption

Consumption at 1/2 load			0.34 GPH
Consumption at 3/4 load			0.42 GPH
Consumption at full load			0.48 GPH

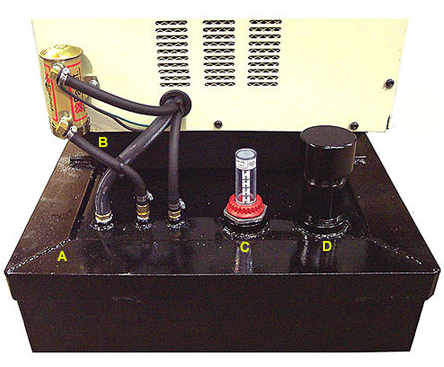

Engine

A. Tank Capacity			50 Gallons
B.Fuel Pump			Electric, 12 VDC
C. Fuel Gauge			Standard
D. Fuel Fill			Standard

Power Output Panel

A. 120 V Twistlock NEMA#5-30R			1-30 Amp
B. 120 V Duplex NEMA#5-20R			2-20 Amp
C. 120/240 V Twistlock NEMA#14-30R			1-30 Amp
D. Running Indicator Light			Standard
E. A/C Indicator Light			Standard
F. Low Oil Indicator Light			Standard
G. Hour Meter			Standard
H. A/C Circuit Breaker			20 Amp - Resetable
I. D/C Circuit Breaker			10 Amp - Resetable
J. Main Line Circuit Breaker			Standard
K. Ground Connection			Standard

Installation Data

Exhaust Outlet			1 1/4" OD Muffler Outlet
Exhaust Location & Direction (Facing Engine)			Left-Side
Service Points (Facing Engine)			Oil Fill: Front-Side Air Filter: Front-Side
Power Output Location (Facing Engine)			Front-Side
Minimum Cord Size			0-50 Feet: 10 AWG 51-100 Feet: 8 AWG 101-150 Feet: 6 AWG
Battery Type			12 VDC - 300 CCA
Oil Capacity			Approx. 1.7 Quarts
Engine Oil Type			10W-30

Warranty

Engine Warranty			1 Year
Generator Warranty			1 Year
100% Coverage for Parts & Labor			Standard

Dimensions

Length			44"
Width			22"
Height			37"
Dry weight			345 lbs
