Central Maine Diesel Inc. (“CMD”) is not affiliated with, sponsored by or otherwise associated with American Honda Motor Company, Inc. (“American Honda”). We purchase genuine Honda® engines and assemble the generator. Honda® is a registered trademark of American Honda.

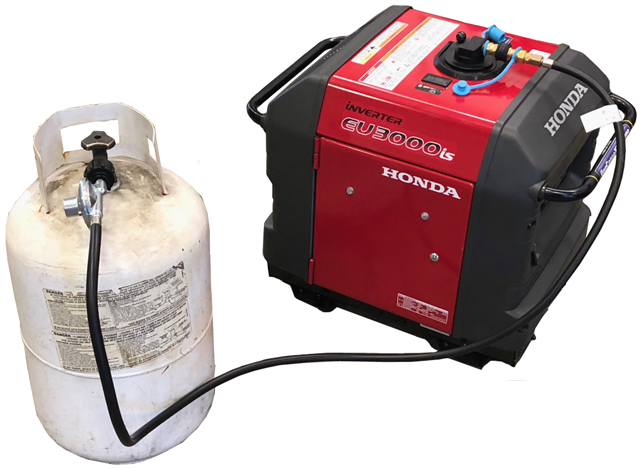

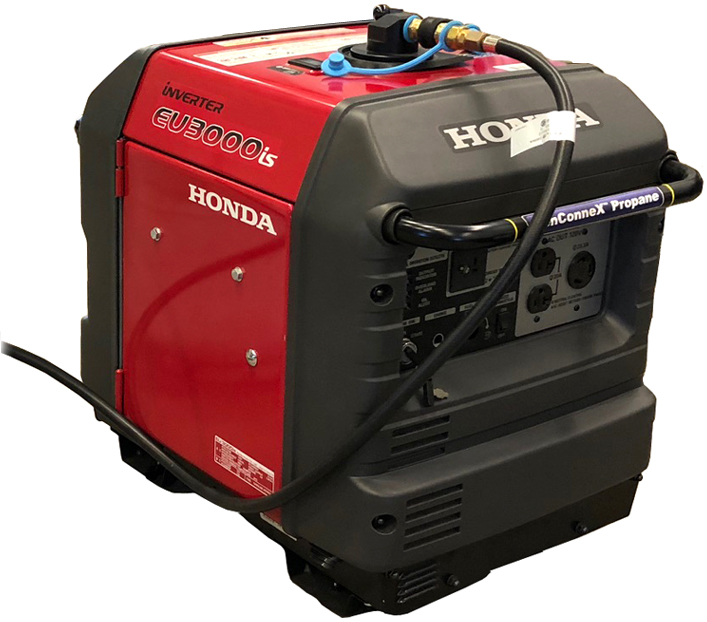

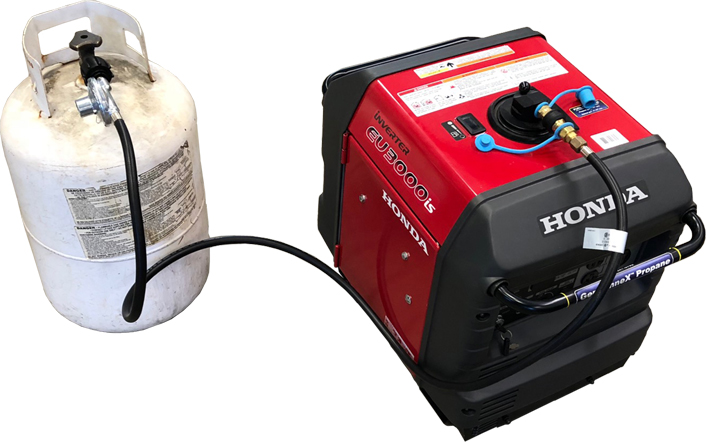

Inverter Generator w/ Genconnex Propane System Model: Honda EU3000iS - Runs on propane right out of the box. No mechanical alterations are necessary.

Propane-Fueled
Quietest propane generator in its class at only 50 dB(A) at 1/4 load.

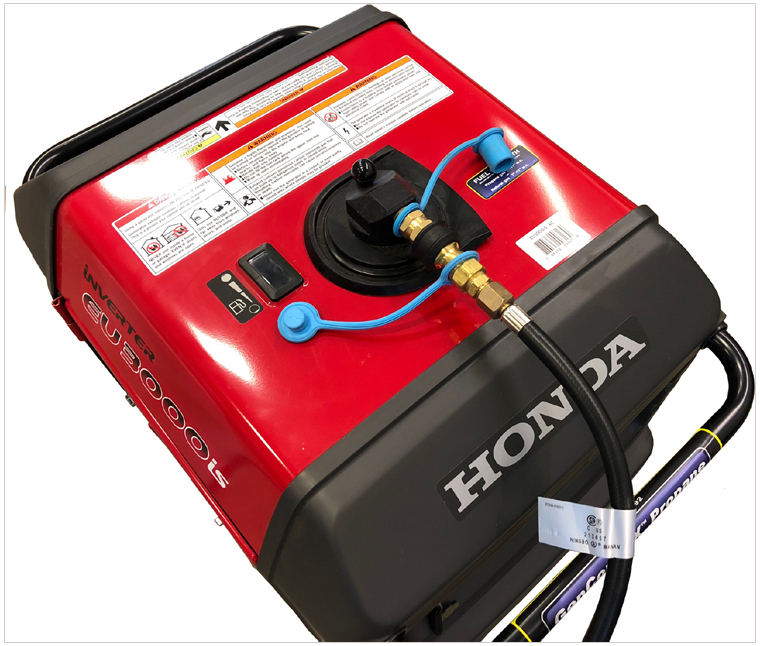

This unit features a Honda GX 200 engine, brushless generator, residential grade muffler, oil pressure shutdown, dual element air cleaner, receptacle panel with 120 V vibration isolator mounts, electric start, 3 year warranty and low pressure propane regulator with 6' hose plus quick disconnect fitting.







Model NumberEU3000iS
Maximum Output3000
Continuous Output2200
Load Amperage at 120 V-
Maximum Load25
Continuous Load18.3
Sound Level57 dB(A)








Model NumberEU3000iS
ModelHonda GX200
Type4 Stroke, OHV
Displacement196 cc
Starting SystemElectric / Recoil
Lubrication SystemForced Splash
Oil AlertStandard
Cylinder BlockAluminum w/ Cast Iron Sleeve
Bore & Stroke2.36 in. x 1.69 in.






Model NumberEU3000iS
Engine Warranty3 Years Warranty
Generator Warranty2 Years Warranty
100% Coverage for Parts & CoverageStandard




Model NumberEU3000iS

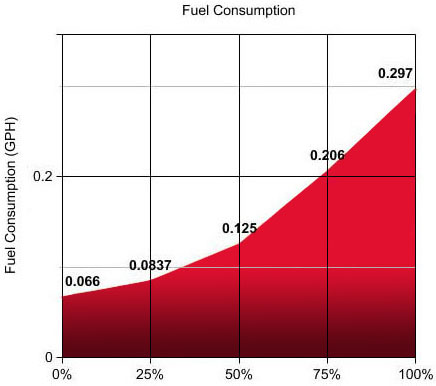

Consumption at 1/2 load0.125 GPH
Consumption at 3/4 load0.206 GPH
Consumption at full load0.297 GPH




Model Number EU2200i

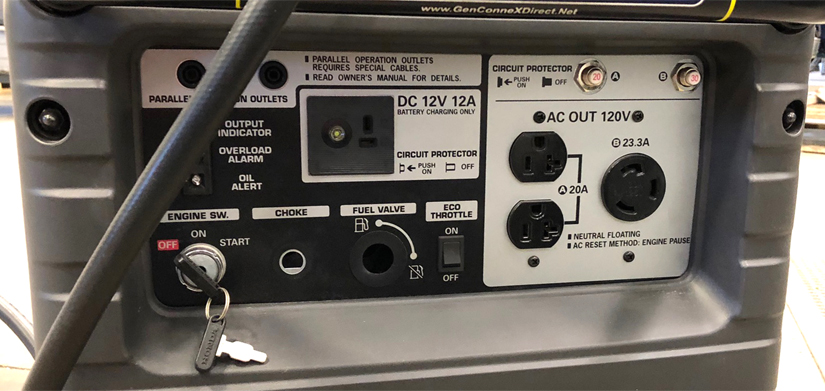

  1    Eco Throttle Standard
  2    Oil Alert Indicator Standard
  3    Overload Alarm Standard
  4    Output Indicator Standard
  5    Parallel Operation Outlet Standard
  6   Ground Terminal Standard
  7   Circuit Breaker Standard
  8   120 V Duplex NEMA#5-20R 2-20 Amp
  9   DC 12 V 8.3 Amps



Model Number EU2200i
Minimum Power Lead Size 0-50 Feet: 10 AWG
51-100 Feet: 8 AWG
No. Power Lead Conductors 4
Exhaust Outlet 1" OD Muffler Outlet
Engine Oil Type 10W-30
Exhaust Location & Direction
(Facing Engine)
Left-side
Service Points
(Facing Engine)
Oil Fill Cap: Right-Side
Fuel Inlet: Left-Side
Power Output: Back-Side
Control Panel: Front-Side
Air Filter: Front-Side



Model Number EU2200i
Replace Air Filter 300 Hours / 12 months
Replace Spark Plug 300 Hours / 12 months
Exercise Generator Under Load Once each month
Change Oil 200 hours / 6 months




Model Number EU2200i
Length 20"
Width 11.4"
Height 16.7"
Dry weight 46.5 lbs
