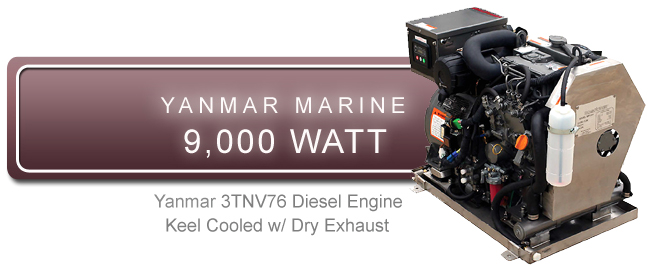

Yanmar Marine 9,000 Watt Diesel Generator - This Yanmar marine diesel generator is suitable for continous use and has plenty of power to run your house or fishing boat.

This unit uses keel cooling. A keel cooler is a closed circuit cooling unit mounted on a vessel's hull beneath the waterline. This closed circuit cooling system eliminates the need for an inboard heat exchanger, raw water pumps and strainers.

Heat exchanger cooling is also available.

This set features a three cylinder Yanmar 3TNV76 1800 RPM diesel engine, brushless generator end with AVR, keel cooling, dry exhaust manifold, water pump, air filter, interlocking rubber mounts, molded belt guard, single side service and automatic shutdowns.




Options   Price
Heat Exchanger Cooling + $475
Wet Exhaust Elbow + $375
Gauge Panel (Oil, Water, Volts & Amps) + $325





Generator
Power Single-Phase ---
Maximum Output 9,500 watts
Continous Output 8,500 watts
Load Amperage at 120 volts ---
Maximum Load 79 Amps
Continous Load 71 Amps
Load Amperage at 240 volts ---
Maximum Load 40 Amps
Continous Load 35 Amps
Sound Level @ 23 ft(7 m) at full load 72 dB(A)



Engine
Type In-Line 3 Cylinder
Model Yanmar 3TNV76
Oil Alert Shutdown Standard
Cylinder Block Aluminum w/ Cast Iron Sleeve
Governor System Centrifugal Mechanical
Displacement 1.1 L
Bore & Stroke 2.99" x 3.23"
Exhaust Outlet 3" OD Muffler Outlet
Exhaust Manifold Dry Exhaust
Cooling System Keel-cooling
Air Cleaner Dual Element Type
Fuel Diesel

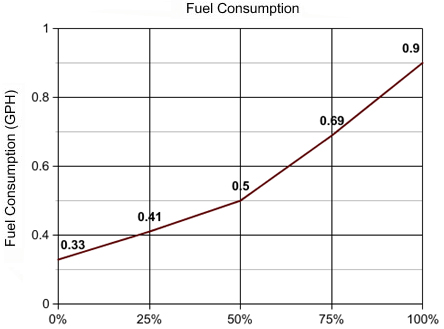

Consumption
Consumption at 1/2 load 0.5 gallons/hour
Consumption at 3/4 load 0.69 gallons/hour
Consumption at full load 0.9 gallons/hour



Control Panel
Key Start Standard
Hourmeter Standard
Water Temperature Shutdown Standard
Oil Pressure Shutdown Standard



Warranty
Engine Warranty 2 Years
Generator Warranty 1 Year
100% Coverage for Parts Standard



Dimensions
Length 28.5 inches
Width 18 inches
Height 22 inches
Dry weight 443 lbs
