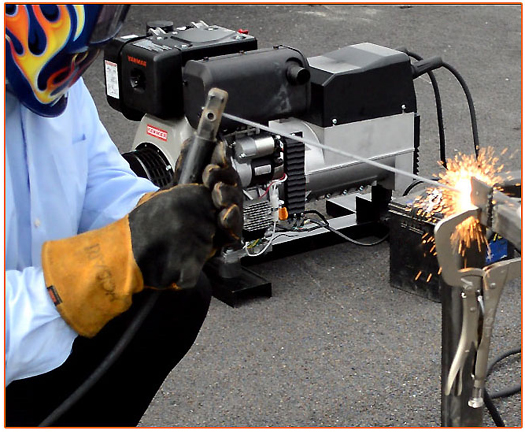

  Yanmar Diesel Engine Drive Welder + Generator - This welder's simple, compact design allows for easy installation in a variety of applications requiring a small footprint and can be anchored to your truck or trailer or operated free standing.

Yanmar Diesel Drive
Welder + Generator

Weld 3/8" steel + 120/240 V AC output.

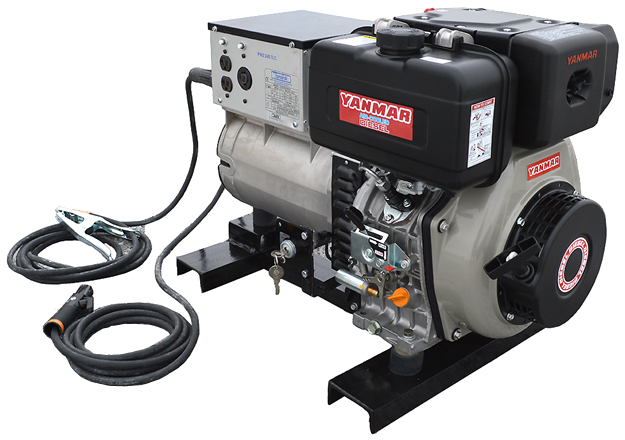

This unit features a Yanmar L100 diesel engine, direct injection, brushless welder/generator, muffler, oil pressure shutdown, air cleaner, welding amps selector switch, 120/240 V AC power outlets, steel skid frame, vibration isolator mounts, battery cables, 2 year warranty and electric start. WELDING CABLES ARE SOLD SEPERATELY.




Options   Price
Welding Cables + $129






Welder + Generator
Welder
Welding Current 180 Amps
Welding Voltage 22-28 V
Duty Cycle 50%
Generator
Continuous Output 5,000 Watts
Load Amperage at 120 V 42 Amps
Load Amperage at 240 V 21 Amps



.
Engine
Type Yanmar L100
Cylinders 1
Horsepower 10 HP
Cylinder Block Aluminum w/ Cast Iron Sleeve
Bore & Stroke 3.38" x 2.95"
Oil Capacity Approx. 1.6 qts
Fuel Tank Capacity 1.5 Gallon
Exhaust Outlet 1" OD Muffler
Fuel Diesel
Starting System Electric



Consumption
Consumption at 1/2 load 0.34 gallons/hour
Consumption at 3/4 load 0.45 gallons/hour
Consumption at full load 0.58 gallons/hour
Fuel Tank Capacity 1.6 gallons




Installation Data
Exhaust Outlet 1" OD Muffler Outlet
Battery Type 12 VDC - 300 CCA
Engine Oil Type 10W-30
Exhaust Location & Direction (Facing Engine) Right-Side
Service Points
(Facing Engine)
Oil Fill Cap: Left-Side
Fuel Inlet: Left-Side
Power Output:Back-Side
Key Start Panel: Left-Side
Air Filter: Front-Side




Control Panel
Welder Output
Amperage Selector Switch 40 - 200A
Welder/Generator Switch Standard
Generator Output
120 V NEMA#5-20R GCFI Duplex 2-20 Amp
120/240 V NEMA#L14-20R Twistlock 1-20 Amp




Maintenance Schedule
Replace Air Filter 300 hours / 12 months
Change Oil 100 hours / 6 months



Warranty
Engine 2 Years
Generator 2 Years
100% Coverage for Parts & Labor Standard



Dimensions
Length 27-1/2"
Width 16-1/2"
Height 20-1/2"
Weight 175 lbs
