Current lead times are 3 weeks.

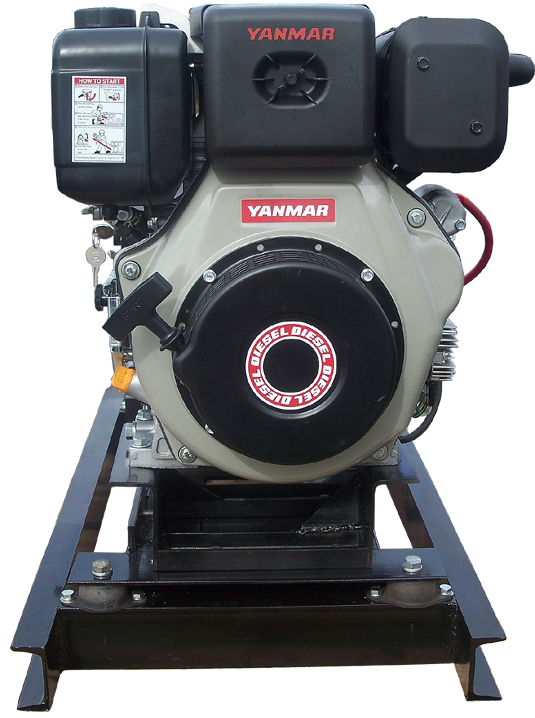

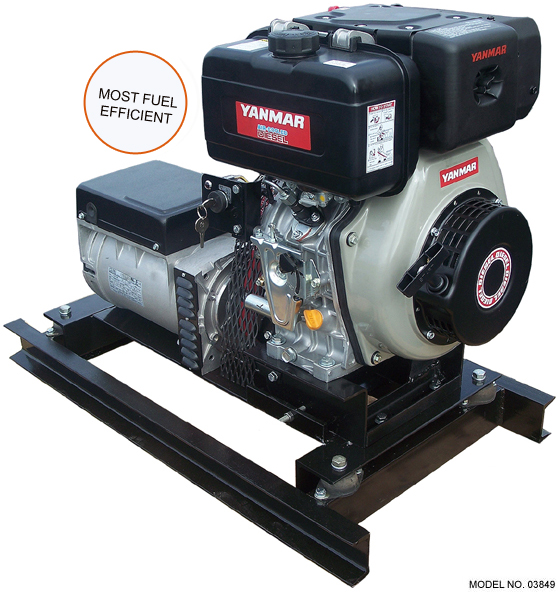

Slow-Turning 5 kW Yanmar Diesel Generator - Grab a 19 gallon fuel tank you'll have electricity for 79 hours. That's an entire weekend plus on only 19 gallons of diesel fuel! This slow-turning diesel generator is THE MOST FUEL EFFICIENT DIESEL GENERATOR WE HAVE EVER SEEN and is suitable for standby or continous use. The slow speed design enhances engine life and significantly decreases sound levels and fuel consumption. Add the two-wire auto feature and this unit would be ideal for a solar power application. This unit includes a slow-turning 10 HP Yanmar Diesel engine, brushless generator end suitable for powering sensitive electronics, residential muffler, replaceable foam air filter elemant, steel skid base w/ vibration isolators (for smooth operation), compact design (LxWxH:29-3/4"x20"x26-1/4"), 2 year engine/generator warranty and is electric start. CALL FOR SHIPPING QUOTE.


Options   Price
Two-Wire Auto Start Control + $375
Deluxe Receptacle Panel w/ Hour Meter + $495
19 Gallon External Fuel Tank + $375

Power Single-Phase ---
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes
Maximum Output 5,000 watts
Continous Output 4,500 watts
Load Amperage at 120 volts ---
Maximum Load 41 Amps
Continous Load 37.5 Amps
Load Amperage at 240 volts ---
Maximum Load 21 Amps
Continous Load 18.75 Amps

Make Yanmar L100
Type Direct Injection
Horsepower 10 HP
Displacement 408 cc
Oil Capacity 1.7 qts.
Cylinders 1
Cylinder Block Aluminum w/ Cast Iron Sleeve
Bore & Stroke 3.38" x 2.83"
Exhaust Outlet 1-1/2" OD Muffler Outlet
Fuel No. 2 Diesel
Starting System Electric

Consumption at 1/2 load 0.24 GPH
Consumption at 3/4 load 0.30 GPH
Consumption at full load 0.34 GPH

Installation Data
No. Power Lead Conductors 4
Minimum Power Lead Size 0-50 Feet: 12 AWG
51-100 Feet: No. 10 AWG
101-150 Feet: No. 8 AWG
Exhaust Outlet 1-1/2" OD Muffler Outlet
Service-Side Direction
(Facing Engine)
Exhaust Direction
(Facing Service Side)
Fuel Tank Location
(Facing Service Side)
Power Output Direction
(Facing Service Side)
Battery Type 12 VDC - 350 CCA
Engine Oil Type 10W-30

Engine Warranty 2 Years
Generator Warranty 2 Years
100% Coverage for Parts & Labor Standard

Length 29-3/4"
Width 20"
Height 26-1/4"
Dry weight 165 lbs
