Current lead times are 3 weeks.

Our Reduced Price:$

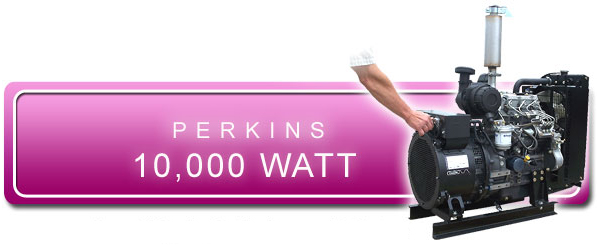

Perkins 10 kW Diesel Generator - When you need serious, reliable power this Perkins 10 kW delivers all you need - and then some! This unit operates at 1800 RPM and with its deep stiff crankcase, isolated valve cover and 4 point vibration mounts, this set runs smooth and quiet.

Continuous Duty.
Rated for 30,000 hours use.

This unit features a Perkins 1.1L in-line 3-cylinder diesel engine, indirect injection for increased fuel efficiency, low heat rejection and quicker starts, brushless generator end, cool flow radiator with fan guards, muffler, automatic voltage regulation, high volume air filter, steel skid base, control panel with hour meter and automatic safety shutdowns for low oil pressure and high water temperature.



Options   Price
55 Gallon Fuel Drum Kit + $195
Two-Wire Auto Start + $799
Sound Proof Enclosure + $3275
100 Gallon Subbase Fuel Tank + $2575
250 Gallon Subbase Fuel Tank + $2875

Maximum Output 10,500 watts
Continous Output 10,000 watts
Power One-Phase MLS4-Y
Load Amperage at 120 volts ---
Maximum Load 88 Amps
Continous Load 83 Amps
Load Amperage at 240 volts ---
Maximum Load 44 Amps
Continous Load 42 Amps
Sound Level @ 23 ft(7 m) at full load 72 dB(A)

3 Phase Output Optional
Automatic Voltage Regulation Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes - 1% regulation from no load to full load.
Maximum Output 10500
Continous Output 10000
Load Amperage at 120 volts---
Maximum Load 63 amps
Continous Load 60 amps
Load Amperage at 208 volts---
Maximum Load 36 amps
Continous Load 35 amps
Load Amperage at 240 volts---
Maximum Load 32 amps
Continous Load 30 amps
Load Amperage at 277 volts---
Maximum Load 27 amps
Continous Load 26 amps
Load Amperage at 480 volts---
Maximum Load 16 amps
Continous Load 15 amps

Model Perkins 403D-11G
Combustion System Indirect Injection
Operating RPM 1800
Number of Cylinders 3
Cylinder Arrangement Vertical in-line
Cycle 4 stroke
Cylinder Block Cast Iron Block w/ Cast Iron Sleeve
Bore & Stroke 3.03" x 3.19"
Displacement 1131 cc
Compression Ratio 23:01
Exhaust Outlet 2" OD Muffler Outlet
Oil Capacity (w/ Oil Filter) 8 Qts
Cooling Water-Cooled
Coolant Capacity Approx. 6.5 Qts
Fuel No. 2 Diesel
Electric Fuel Pump 12 V - Standard
Fuel/Water Seperator Standard
Starting System Electric

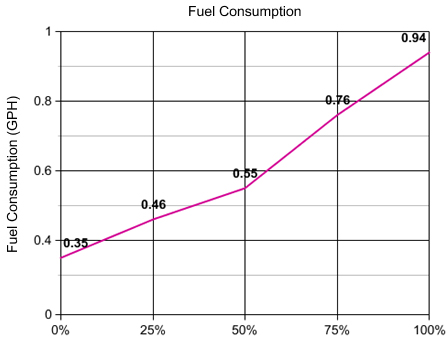

Consumption at 1/2 load 0.55 gallons/hour
Consumption at 3/4 load 0.76 gallons/hour
Consumption at full load load 0.94 gallons/hour

Control Panel
Turn Key Start Standard
Hour meter Standard
Oil Pressure Shutdown Standard
Engine Overspeed Shutdown Standard
High Temperature Shutdown Standard

Installation Specifications
Fuel Inlet Hose Size 3/8"
Fuel Return Hose Size 5/16"
Power Lead Size No. 4 AWG
Exhaust Outlet 2" OD Muffler Outlet
Coolant Recommendation Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions
(L x D x H)
14-1/2" x 7-3/4" x 21"
Service-Side Direction
(Facing Radiator)
Exhaust Direction
(Facing Service Side)
Fuel Inlet & Return Location
(Facing Service Side)
Inlet: Front-Side
Outlet: Front-Side
Power Output Direction
(Facing Service Side)
Battery Type 12 VDC - 575 CCA - Not Included
Engine Oil Type 10W-40 Synthetic

Engine Warranty 1 Year
Generator Warranty 1 Year
100% Coverage for Parts & Labor Standard

Length 40 inches
Width 14-1/2 inches
Height 32 inches
Dry weight 745 lbs
