Our Reduced Price:$
View

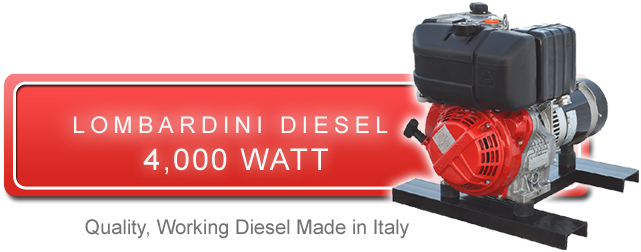

Lombardini 4,000 Watt Diesel Generator - This quality, working diesel is suitable for standby power or emergency use and has plenty of power to run your home, job site or business. The generator's simple, compact design allows for easy installation in a variety of applications requiring a small footprint and can be anchored to a concrete pad or operated free standing.

0.24 GPH at 1/2 Load
The smallest air-cooled diesel engine we've seen.

This brand new unit features a 7.5 HP Lombardini direct injection engine by Kohler. This genset is equipped with a "computer safe" generator, fuel tank, muffler low oil shutdown, receptacle panel with 120/240 V output, voltmeter and is recoil start.

55 GALLON DRUM
FUEL TANK KIT




Options   Price
18 Gallon External Fuel Tank + $375







.
Generator
Power Single-Phase
Maximum Output 4,000 Watts
Continuous Output 3,750 Watts
Load Amperage at 120 V
Maximum Load 33 amps
Continous Load 31 amps
Load Amperage at 240 V
Maximum Load 16.5 amps
Continous Load 15.6 amps





.
Engine
Type Lombardini 15LD350
Power 7.5 HP
Oil Capacity Approx. 1.2 Qts
Low Oil Shutdown Standard
Exhaust Outlet 1" OD Muffler Outlet
Cooling System Air-Cooled
Fuel Diesel
Starting System Recoil





Consumption
Consumption at 1/2 load 0.26 GPH
Consumption at 3/4 load 0.32 GPH
Consumption at full load 0.37 GPH

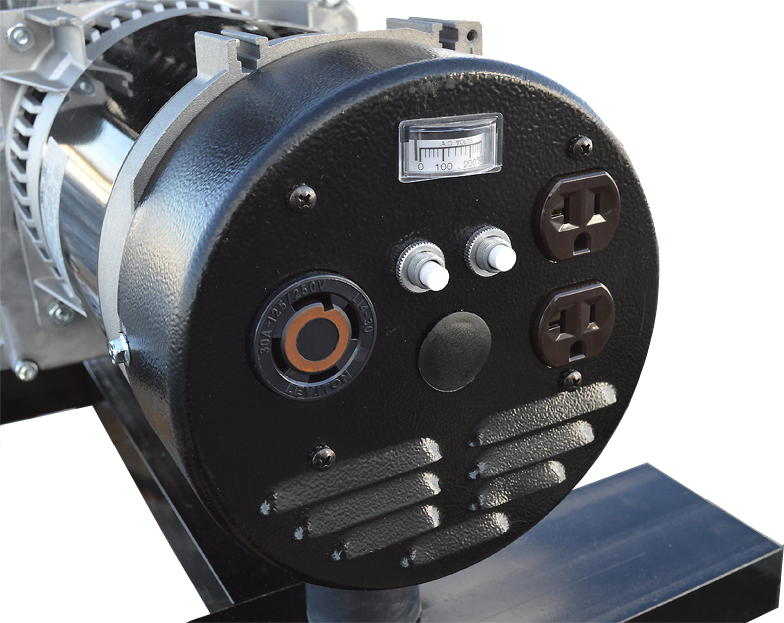

Power Output Panel
Voltmeter Standard
120 V Duplex NEMA#5-20R 2-20 Amp
120/240 V NEMA#L14-30R 1-30 Amp




Installation Data
Exhaust Outlet 1" OD Muffler
Exhaust Location & Direction
(Facing Engine)
Right-Side
Service Points
(Facing Engine)
Oil Fill: Right-Side
Air Filter: Front-Side
Power Output Location
(Facing Engine)
Back-Side
Minimum Cord Size 0-50 Feet: 10 AWG
51-100 Feet: 8 AWG
Engine Oil Type 15W-40




Warranty
Engine Warranty 1 Year
Generator Warranty 1 Year
100% Coverage for Parts & Labor Standard




Dimensions
Length 26"
Width 19"
Height 19-3/4"
Weight 175 lbs
