HEAVY-DUTY DIESEL GENERATORS (NOT TIER 4 FINAL)


Heavy-duty, 1800 RPM diesel generators. Compliant for applications that only operate upon
the loss of a normal power source such as utility.


Our Reduced Price:$
View
View
View
View

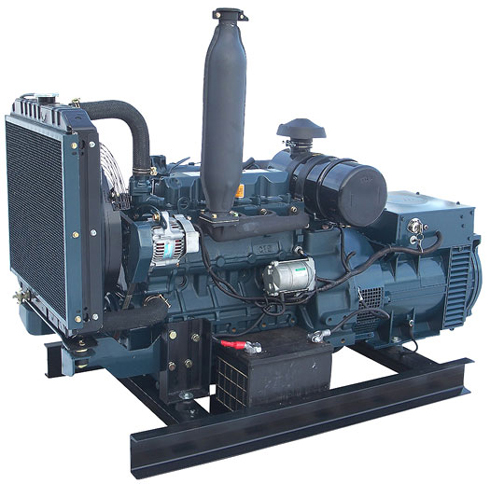

Kubota Powered 30 kW Diesel Generator - Whether for a work site, cabin, lodge, or standby emergency power, this Kubota diesel will do the job every day. Day after day. This unit operates at 1800 RPM and with its super quiet muffler, acoustic dampening air intake system and 4 point vibration mounts, runs smooth and quiet.

This unit features a Kubota V3300, 4 cylinder diesel engine, cast iron crankcase with replaceable wet-type cylinder liners, full flow lube oil filteration, brushless generator with AVR, liquid cooling, +/- 1% AC voltage regulation to protect your electronics, oil & water safety shutdowns, high volume air filter, heavy steel skid base, muffler for quiet operation, glow plugs, turn-key start and hour meter.

EMERGENCY STANDBY APPLICATIONS ONLY

These are generator applications that ONLY operate upon the loss of a normal power source such as utility or mains grid.



Options   Price
45 Gallon Subbase Fuel Tank + $1,195
60 Gallon Subbase Fuel Tank + $1,375
100 Gallon Subbase Fuel Tank + $1,495
Sound Proof Enclosure + $1,795






Generator
Automatic Voltage Regulation Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes - 1% regulation from no load to full load.
Power Single-Phase ---
Maximum Output 33,000 watts
Continous Output 28,500 watts
Load Amperage at 120 volts ---
Maximum Load 275 Amps
Continous Load 238 Amps
Load Amperage at 240 volts ---
Maximum Load 138 Amps
Continous Load 119 Amps
Sound Level @ 23 ft(7 m) 74 dB(A)



Engine
Model Kubota V3300
Type Vertical In-Line
Horsepower 48 HP
Oil Capacity (w/ Oil Filter) Approx. 11.1 qts
RPM 1800
Cylinders 4
Cylinder Block Cast Iron w/ Cast Iron Sleeves
Bore & Stroke 3.86 x 4.33 in.
Cooling Liquid-Cooling, Pushor Fan
Coolant Capacity Approx. 11.4 Qts
Fuel No. 2 Diesel
Electric Fuel Pump 12 V - Standard
Cold Weather Starting Aid Glow Plugs
Starting System Electric

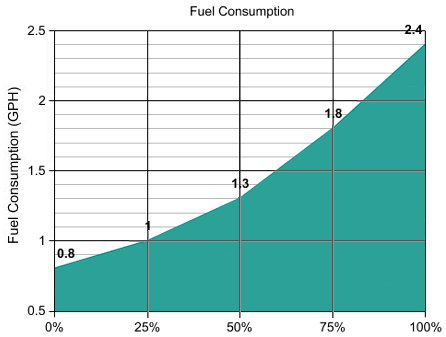

Consumption
Consumption at 1/2 load 1.3 gallons/hour
Consumption at 3/4 load 1.8 gallons/hour
Consumption at full load 2.4 gallons/hour




Control Panel
Turn-Key Start Standard
Hour Meter Standard
Water Temperature Shutdown Standard
Oil Pressure Shutdown Standard



Installation Data
Fuel Inlet Hose Size 3/8"
Fuel Return Hose Size 5/16"
Minimum Power Lead Size 1/0 AWG
No. Power Lead Conductors 4
Exhaust Outlet 2" OD Muffler Outlet
Coolant Recommendation Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions
(L x D x H)
22-3/4" x 9-1/2" x 24"
Fuel Inlet & Return Location
(Facing Radiator)
Left-Side
Exhaust Direction
(Facing Radiator)
Right-Side
Power Output Location (Facing Radiator) Back-Side
Service Points
(Facing Radiator)
Oil Fill: Left-Side
Oil Drain:Left-Side
Air Filter: Left-Side
Oil Filter: Left-Side
Fuel Filter: Left-Side
Battery Type 12 VDC - 575 CCA
Engine Oil Type SAE 15W-40



Maintenance Schedule
Replace Oil Filter 500 hours / 12 months
Replace Fuel Filter 500 hours / 12 months
Replace Air Filter 500 Hours / 12 months
Replace Engine Coolant 500 Hours / 12 months
Exercise Generator Under Load Twice each month
Change Oil 500 hours / 12 months



Warranty
Engine Warranty 3 Years
Generator Warranty 1 Year
100% Coverage for Parts & Labor Standard




Dimensions
Length 60"
Width 26-1/2"
Height 40"
Dry weight 1850 lbs
