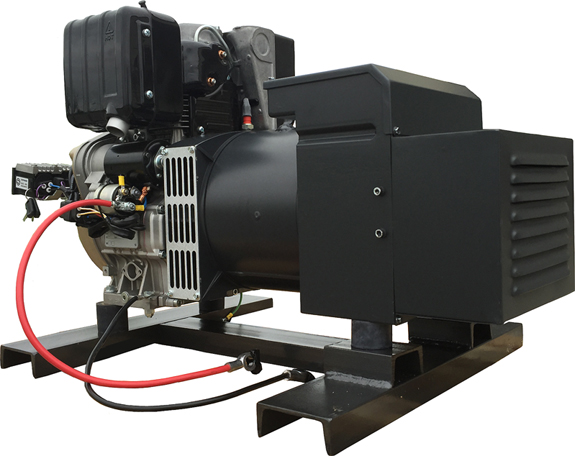

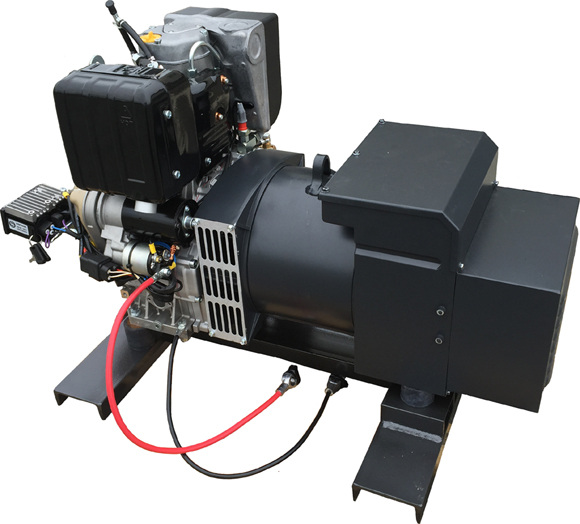

Kohler Diesel 24 Volt DC Generator - This Kohler powered diesel is the most efficient way to charge a battery bank. The generator's simple, compact design allows for easy installation in a variety of applications requiring a small footprint and can be anchored to a concrete pad or operated free standing.

DC Generator.
DC output is delivering the correct voltage and amperage and operating at 100% of its efficiency. Always supplies a clean, ready source of charging power to backup batteries used in mobile and stationary applications.

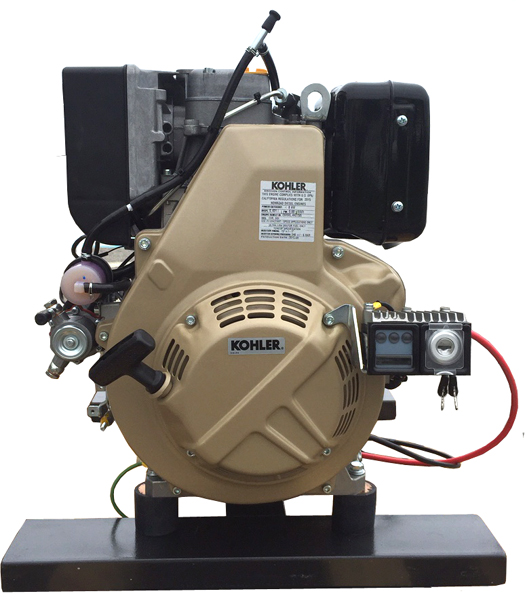

This unit features an Kohler Diesel KD440 diesel engine, brushless generator, critical exhaust silencer, oil pressure shutdown, large capacity automotive style air cleaner, electric fuel pump, welded steel skid frame, vibration isolator mounts, battery cables, 2 year warranty and electric start.




Options   Price
Two-Wire Auto Start+ $495
18 Gallon External Fuel Tank + $375







Generator
24 Volt Direct Current ---
Internally Regulated Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes - 1% regulation from no load to full load.
Maximum Output 5,500 watts
Voltage 24 V DC
Maximum Amp Output 200 Amps






Engine
Make Kohler KD440
Type 4 Stroke
Oil Capacity 1.6 qts
Cylinder Block Aluminum w/ Cast Iron Sleeves
Bore & Stroke 3.38" x 2.95"
Cylinders 1
Exhaust Outlet 1" OD Mufler
Fuel No. 2 Diesel
Starting System Electric





Consumption
Consumption at 1/2 load 0.24 gal/hr
Consumption at 3/4 load 0.30 gal/hr
Consumption at full load load 0.34 gal/hr



Control Panel
Key Start Standard
Hour Meter Standard
Circuit Breaker 10 Amps - Resetable





Installation Data
No. Power Lead Conductors 4
Minimum Power Lead Size 0-50 Feet: 12 AWG
51-100 Feet: No. 10 AWG
101-150 Feet: No. 8 AWG
Exhaust Outlet 1-1/2" OD Muffler Outlet
Service-Side Direction
(Facing Engine)
Left-Side
Exhaust Direction
(Facing Service Side)
Back-Side
Fuel Tank Location
(Facing Service Side)
Front-Side
Power Output Direction
(Facing Service Side)
Left-Side
Battery Type 12 VDC - 350 CCA
Engine Oil Type 10W-30



Warranty
Worldwide Support Network 4,000 Service Locations
Engine Warranty 2 Years
Generator Warranty 2 Years
100% Coverage for Parts & Labor Standard




Dimensions
Length 29-3/4"
Width 20"
Height 26-1/4"
Dry weight 165 lbs
