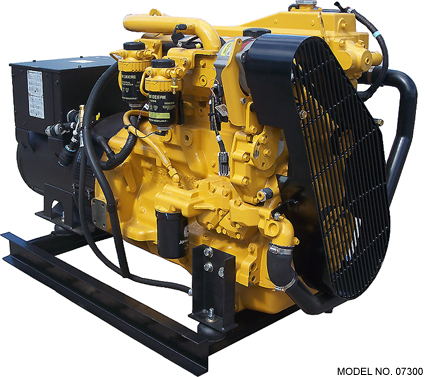

  65,000 Watt Marine Diesel Generator - An engineer's dream, this set is simple to operate and maintain. This John Deere marine diesel generator is suitable for continous use and has plenty of power to run your house or fishing boat

John Deere 4045TF.
Keel cooling with wet manifold.

This unit operates at 1800 RPM and comes with a muffler and 4 point vibration mounts for quieter operation and crew comfort. This unit features a 4.5L John Deere 4045TFM85 diesel engine with keel cooling and wet manifold, replaceable wet-type cylinder liners, brushless generator end, solid state automatic voltage regulator w/ stability adjustment and underspeed protection, extended 500-hour oil change and filter interval, single-side service points, welded steel skid base and control panel with hour meter.






Engine
Power Single-Phase ---
Automatic Voltage Regulation Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes - 1% regulation from no load to full load.
Maximum Output 66,500 watts
Continous Output 65,000 watts
Power Single Phase MLS4-Y
Load Amperage at 120 volts ---
Maximum Load 554 Amps
Continous Load 541 Amps
Load Amperage at 240 volts ---
Maximum Load 277 Amps
Continous Load 270 Amps
Sound Level 75 dB(A)



Engine
Type John Deere 4045TFM85
Cylinders 4
Operating RPM 1800 RPM
Cylinder Block Cast Iron Block w/ Cast Iron Sleeve
Bore & Stroke 4.17" x 5.00"
Displacement 4.5 Liters
Aspiration Turbocharged
Exhaust Wet Manifold
Cooling System Keel-Cooled
Fuel Diesel
Starting System Electric



Engine
Consumption at 1/2 load 3.0 gal/hr
Consumption at 3/4 load 4.2 gal/hr
Consumption at full load 4.9 gal/hr



Control Panel
Key Start Standard
Hour Meter Standard
Circuit Breaker 10 Amps - Resetable



Installation Data
Fuel Inlet Hose Size 3/8"
Fuel Return Hose Size 5/16"
Minimum Power Lead Size 2/0 AWG
No. Power Lead Conductors 4
Exhaust Outlet 2" OD Muffler Outlet
Fuel Inlet & Return Location
(Facing Radiator)
Left-Side
Exhaust Direction
(Facing Radiator)
Left-Side
Power Output Location (Facing Radiator) Back-Side
Service Points
(Facing Radiator)
Oil Fill: Left-Side
Oil Drain:Left-Side
Air Filter: Left-Side
Oil Filter: Left-Side
Fuel Filter: Left-Side
Battery Type 12 VDC - 575 CCA - Not Included
Engine Oil Type SAE 15W-40



Dimensions
Worldwide Support Network 4,000 Service Locations
Engine Warranty 2 Year
Generator Warranty 1 Year
100% Coverage for Parts & Labor Standard



Dimensions
Length 63"
Width 24"
Height 45"
Dry weight 1,725 lbs
