HEAVY-DUTY DIESEL GENERATORS (NOT TIER 4 FINAL)


Heavy-duty, 1800 RPM diesel generators. Compliant for applications that only operate upon
the loss of a normal power source such as utility.


Our Reduced Price:$
View
View
View
View
View
View

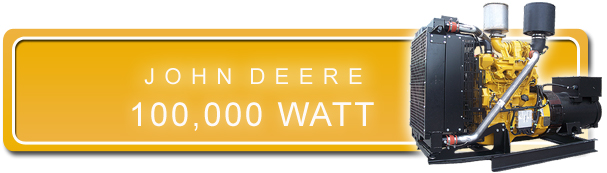

John Deere 100 kW Diesel Generator - This John Deere diesel generator is suitable for continous use and This John Deere diesel generator is suitable for continous use and has plenty of power to run your home, job site or business.

Like all Central Maine Diesel generators, this unit is fully customizable. From enclosure to fuel tank to controls to trailer, you choose the options right for you! And, as an added benefit, you will always have the flexibility to upgrade options later.

This unit features an in-line, 4-cycle 4.5L John Deere 4045HF diesel engine, electronic governor (0.5% frequency control), cast iron crankcase with reborable liners, turbocharged aspiration, brushless generator end (fan-cooled), +/- 1% AC voltage regulation to protect your electronics, low oil and high water temperature shutdown, high volume air filter, extended 500-hour oil change and filter interval, battery charging 12 volt alternator, glow plugs for cold weather starting, heavy steel skid base and control panel w/ hour meter.




Options   Price
Sound Proof Enclosure+ $4395
Two-Wire Auto Start + $799
100 Gallon Subbase Fuel Tank + $2575
250 Gallon Subbase Fuel Tank + $2875
Double-Axle Trailer + $3695







Generator
Power Single-Phase ---
Automatic Voltage Regulation Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes - 1% regulation from no load to full load.
Maximum Output 105,000 watts
Continous Output 100,000 watts
Load Amperage at 120 volts ---
Maximum Load 875 Amps
Continous Load 833 Amps
Load Amperage at 240 volts ---
Maximum Load 437.5 Amps
Continous Load 416.7 Amps



Engine
Type John Deere 4045HF285
Cylinders 4
Operating RPM 1800 RPM
Horsepower 158 HP
Cylinder Block Cast Iron Block w/ Cast Iron Sleeve
Bore & Stroke 4.17" x 5.0"
Displacement 4.5 Liters
Aspiration Turbocharged, air to air charge cooled
Air Cleaner Heavy Duty Replaceable Dry Element
Oil Capacity (w/ Oil Filter) 15.6 qts.
Exhaust Outlet 3" OD Muffler Outlet
Governor Electronic Governor
Coolant Capacity Approx. 31.7 Qts
Cold Weather Starting Aid Glow Plugs
Fuel Diesel
Starting System Electric



.

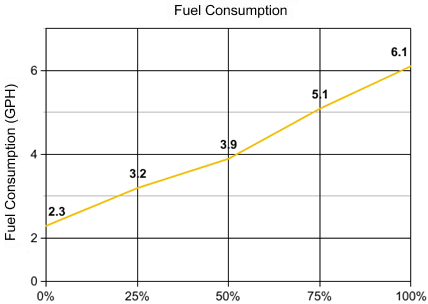

Consumption
Consumption at 1/2 load 3.9 gal/hr
Consumption at 3/4 load 5.1 gal/hr
Consumption at full load load 6.1 gal/hr



Control Panel
Key Start Standard
Hourmeter Standard
Circuit Breaker 10 Amps - Resetable



Installation Data
Fuel Inlet Hose Size 1/2"
Fuel Return Hose Size 3/8"
Minimum Power Lead Size 2/0 AWG
No. Power Lead Conductors 4
Exhaust Outlet 3" OD Muffler Outlet
Coolant Recommendation Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions
(L x D x H)
26-3/4" x 12" x 26"
Fuel Inlet & Return Location
(Facing Radiator)
Left-Side
Exhaust Direction
(Facing Radiator)
Right-Side
Power Output Location (Facing Radiator) Back-Side
Service Points
(Facing Radiator)
Oil Fill: Right-Side
Oil Drain:Left-Side
Air Filter: Left-Side
Oil Filter: Left-Side
Fuel Filter: Left-Side
Battery Type 12 VDC - 600 CCA
Engine Oil Type SAE 15W-40



Warranty
Worldwide Support Network 4,000 Service Locations
Engine Warranty 2 Years
Generator Warranty 1 Year
100% Coverage for Parts & Labor Standard




Dimensions
Length 86 inches
Width 35 inches
Height 56 inches
Dry weight 2,150 lbs
