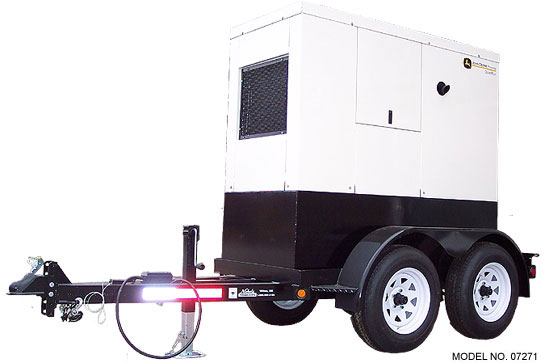

Mobile 60,000 Watt Diesel Generator - This diesel generator is suitable for continous use and has plenty of power to your home, job site or business. This unit operates at 1800 RPM and comes with a muffler, sound attenuated enclosure, and 4 point vibration mounts for quieter operation. This unit features a John Deere 5030HF turbocharged diesel engine, electronic governor (0.5% frequency control), electronic engine controls (including snapshot diagnostic data), cast iron crankcase with reborable liners, full flow lube oil filteration, brushless generator end (fan-cooled), solid state automatic voltage regulator w/ stability adjustment and underspeed protection, turbocharged aspiration, electronic fuel controller, extended 500-hour oil change and filter interval, single-side service points, liquid cooling, residential-grade muffler, replaceable foam air filter element, heavy steel skid base, quick acting glow plugs and single-axle trailer w/ built-in 60 gallon subbase fuel tank. Battery Not Included. CALL FOR SHIPPING QUOTE.
PRINTABLE VERSION






Generator
Power Single-Phase ---
Automatic Voltage Regulation Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes - 1% regulation from no load to full load.
Load Amperage at 120 volts ---
Maximum Load 517 Amps
Continous Load 500 Amps
Load Amperage at 240 volts ---
Maximum Load 258 Amps
Continous Load 250 Amps
Sound Level
@ 23 ft (7 m)
74 dB(A)


Engine
Model John Deere 5030HF
Type Inline, 4 Cycle
Horsepower 96 HP
Operating RPM 1800
Cylinders 5
Displacement 3.05 L
Cylinder Block Cast Iron Cylinder Bore
Bore & Stroke 3.4" x 4.1"
Exhaust Outlet 2" OD Muffler Outlet
Low Oil Alert Standard
Air Cleaner Heavy-Duty Dual Element
Charging System 12 V - 20 Amp
Cooling Liquid-Cooled
Aspiration Turbocharged
Fuel No. 2 Diesel
Cold Weather Starting Aid Glow Plugs
Starting System Electric



Consumption
Consumption at 1/2 load 2.0 gallons/hour
Consumption at 3/4 load 2.6 gallons/hour
Consumption at full load 3.7 gallons/hour
Fuel Tank Size 60 Gallons



Trailer
Integral Fuel Tank 60 Gallons
Ball Coupler 2"
Tailights Standard
Semi-Gloss Black Finish Standard
Swivel Tongue Jack Standard
Single-Axle Standard
Highway-Use Rated Standard

Installation Data
Fuel Inlet Hose Size 3/8"
Fuel Return Hose Size 5/16"
Power Lead Size No. 4 AWG
No. Power Lead Conductors 4
Exhaust Outlet 2" OD Muffler Outlet
Coolant Recommendation Mixture: 1/2 Anti-Freeze & 1/2 Water
Battery Requirement 12 VDC - 525 CCA
Engine Oil Requirement 10w-30 Synthetic
Exhaust Location & Direction
(Facing Radiator)
Right-side
Service Points
(Facing Radiator)
Oil Fill Cap: Right-Side
Oil Filter: Right-Side
Air Filter: Right-Side
Fuel Filter: Left-Side
Fuel Inlet: Left-Side
Power Output: Back-Side
Control Panel: Back-Side



Warranty
Worldwide Support Network 4,000 Service Locations
Engine Warranty 2 Years
Generator Warranty 1 Year
100% Coverage for Parts & Labor Standard



Dimensions
Length 14 Feet
Width 6 Feet
Height 9 Feet
Dry weight 3,075 lbs
