Current lead times are 1 week.
|
|
|

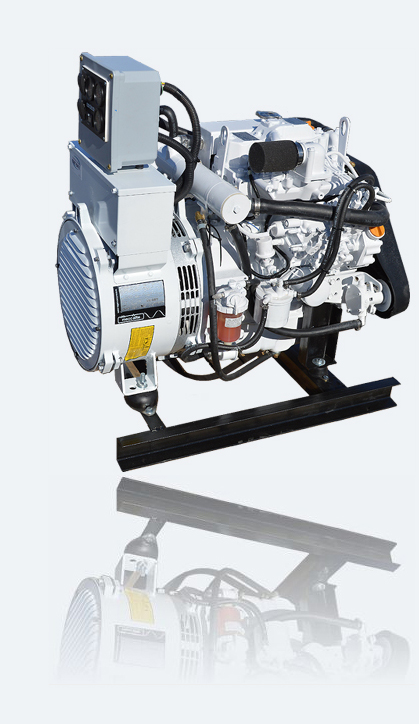

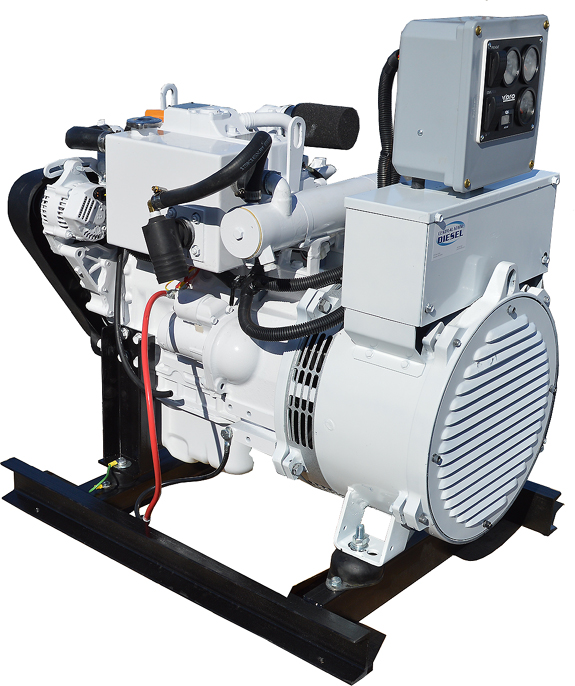

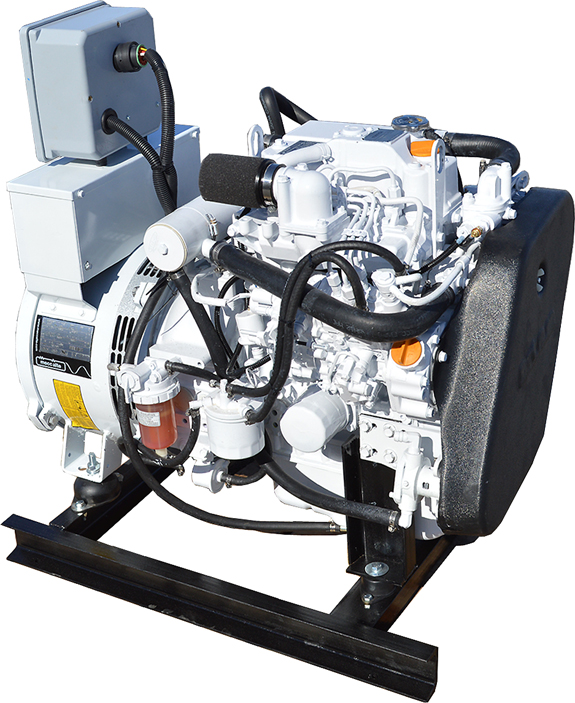

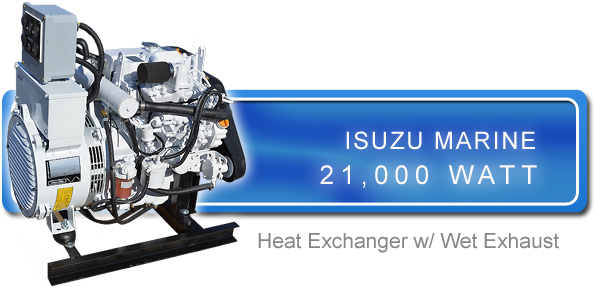

Isuzu 21 kW Marine Diesel Generator - Brand new marinized Isuzu diesel engine with heat exchanger cooling and wet exhaust. Compact design makes this a perfect power plant for your house or fishing boat.
Isuzu Marine
Fresh-water cooling with coolant recovery tank + water injected exhaust elbow.
This unit features an Isuzu 4LE1 diesel engine, brushless generator with AVR (automatic voltage regulator) analog gauge panel with oil pressure, water temperature and voltage, heat exchanger, wet exhaust, raw water pump, glow plugs for cold weather starting and is electric start.
|
| Options |
Price |
| Two-Wire Auto Start |
+ $495 |
| 19 Gallon External Fuel Tank |
+ $375 |
|
|
| Generator |
|
| Maximum Output |
22,000 Watts |
| Continous Output |
20,000 Watts |
| Load Amperage at 120 V |
|
| Maximum Load |
183 Amps |
| Continous Load |
167 Amps |
| Load Amperage at 240 V |
|
| Maximum Load |
92 Amps |
| Continous Load |
83 Amps |
|
|
|
| Engine |
|
| Model |
Isuzu 4LE1 |
| Type |
Vertical In-Line, Indirect Injection |
| Horsepower |
32 HP |
| Oil Capacity (w/ Oil Filter) |
Approx. 6.4 qts |
| RPM |
1800 |
| Cylinder Block |
Aluminum w/ Cast Iron Sleeves |
| Bore & Stroke |
3.35" x 3.78" |
| Cooling System |
Heat Exchanger |
| Fuel |
No. 2 Diesel |
| Electric Fuel Pump |
12 V - Standard |
| Cold Weather Starting Aid |
Glow Plugs |
| Starting System |
Electric |
|
| Consumption |
|
| Consumption at 1/2 load |
0.98 gallons/hour |
| Consumption at 3/4 load |
1.41 gallons/hour |
| Consumption at full load |
1.81 gallons/hour |

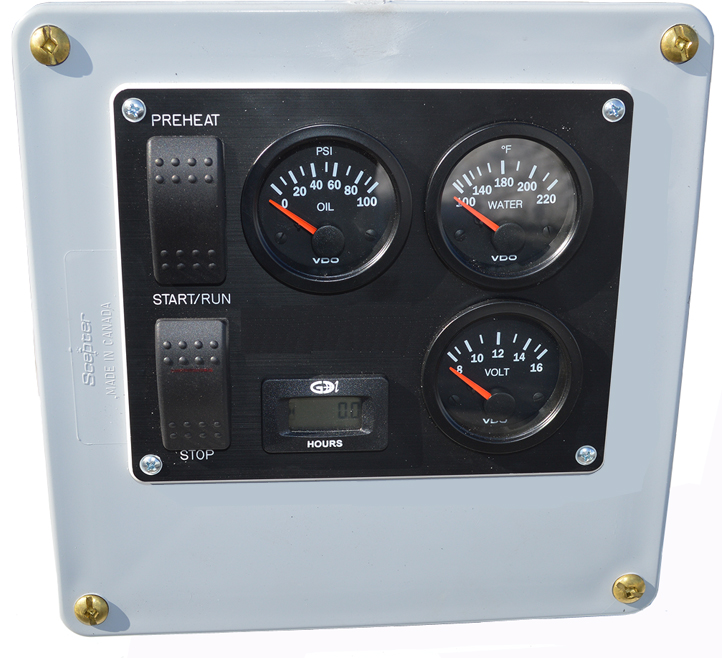

| Gauge Panel |
|
| A. Start/Run/Stop Switch |
Standard |
| B. Engine Preheat |
Standard |
| C. Hour Meter |
Standard |
| D. Oil Pressure Gauge |
Standard |
| E. Water Temperature Gauge |
Standard |
| F. Voltmeter |
Standard |
| Installation Data |
|
| Fuel Inlet |
3/8" |
| Fuel Return |
5/16" |
| Wet Exhaust Elbow |
2" OD |
| Battery Type |
12 VDC - 575 CCA |
| Engine Oil Type |
SAE 15-40 |
Exhaust Location & Direction
(Facing Belt Guard) |
Right-Side |
Service Points
(Facing Belt Guard) |
Oil Fill: Left-Side
Air-Filter: Back-Side
Oil Filter: Left-Side
Fuel Filter: Left-Side
Power Output: Back-Side |
| Engine Oil Type |
SAE 15W-40 |
| Oil Capacity (w/ Oil Filter) |
Approx. 6.4 qts |
| Maintenance Schedule |
|
| Replace Oil Filter |
500 hours / 12 months |
| Replace Air Filter |
500 hours / 12 months |
| Replace Fuel Filter |
500 hours / 12 months |
| Exercise Generator Under Load |
Once each month |
| Change Oil |
500 hours / 12 months |
| Warranty |
|
| Engine |
2 Years |
| Generator |
1 Year |
| 100% Coverage for Parts & Labor |
Standard |
| Dimensions |
|
| Length |
54" |
| Width |
24" |
| Height |
34" |
| Weight |
850 lbs |
|
