Current lead times are 1 week.
|
|
|

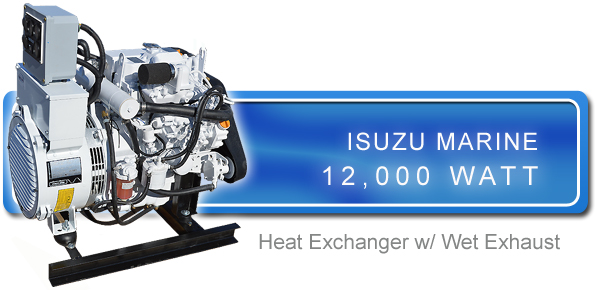

Isuzu 12 kW Marine Diesel Generator - Brand new marinized Isuzu diesel engine with heat exchanger cooling, wet exhaust and belt guard. Compact design makes this a perfect power plant for your house or fishing boat.
Isuzu Marine
Fresh-water cooling with coolant recovery tank + water injected exhaust elbow.

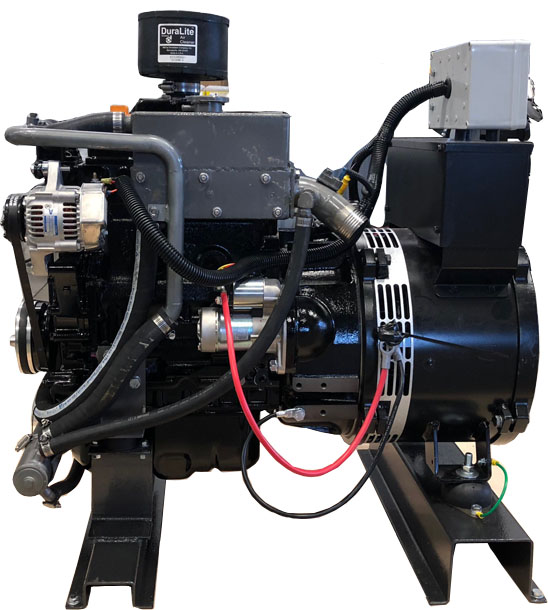

This unit features an Isuzu 3CE1 diesel engine, brushless generator with AVR (automatic voltage regulator) turn-key start panel with oil pressure and water temperature shutdown, heat exchanger, wet exhaust, raw water pump, glow plugs for cold weather starting and is electric start.
|
| Options |
Price |
| Two-Wire Auto Start |
+ $495 |
| 19 Gallon External Fuel Tank |
+ $375 |
|
|
| Generator |
|
| Maximum Output |
12,500 Watts |
| Continous Output |
12,000 Watts |
| Load Amperage at 120 V |
|
| Maximum Load |
104 Amps |
| Continous Load |
100 Amps |
| Load Amperage at 240 V |
|
| Maximum Load |
52 Amps |
| Continous Load |
50 Amps |
|
|
|
| Engine |
|
| Model |
Isuzu 3CE1 |
| Type |
Vertical In-Line, Indirect Injection |
| Horsepower |
22.7 HP |
| Oil Capacity (w/ Oil Filter) |
Approx. 6.7 qts |
| RPM |
1800 |
| Cylinder Block |
Cast Iron w/ Cast Iron Sleeves |
| Bore & Stroke |
3.46" x 3.54" |
| Cooling System |
Heat Exchanger |
| Fuel |
No. 2 Diesel |
| Electric Fuel Pump |
12 V - Standard |
| Cold Weather Starting Aid |
Glow Plugs |
| Starting System |
Electric |
|
| Consumption |
|
| Consumption at 1/2 load |
0.48 gallons/hour |
| Consumption at 3/4 load |
0.68 gallons/hour |
| Consumption at full load |
0.9 gallons/hour |
| Control Panel |
|
| A. Turn-Key Start Switch |
Standard |
| B. Engine Preheat |
Standard |
| C. Hour Meter |
Standard |
| D. Oil Pressure Shutdown |
Standard |
| E. Water Temperature Shutdown |
Standard |
| Installation Data |
|
| Fuel Inlet |
3/8" |
| Fuel Return |
5/16" |
| Wet Exhaust Elbow |
2" OD |
| Battery Type |
12 VDC - 575 CCA |
| Engine Oil Type |
SAE 15-40 |
Exhaust Location & Direction
(Facing Belt Guard) |
Right-Side |
Service Points
(Facing Belt Guard) |
Oil Fill: Left-Side
Air-Filter: Back-Side
Oil Filter: Left-Side
Fuel Filter: Left-Side
Power Output: Back-Side |
| Engine Oil Type |
SAE 15W-40 |
| Oil Capacity (w/ Oil Filter) |
Approx. 6.4 qts |
| Maintenance Schedule |
|
| Replace Oil Filter |
500 hours / 12 months |
| Replace Air Filter |
500 hours / 12 months |
| Replace Fuel Filter |
500 hours / 12 months |
| Exercise Generator Under Load |
Once each month |
| Change Oil |
500 hours / 12 months |
| Warranty |
|
| Engine |
2 Years |
| Generator |
1 Year |
| 100% Coverage for Parts & Labor |
Standard |
| Dimensions |
|
| Length |
39-1/2" |
| Width |
21" |
| Height |
29" |
| Weight |
825 lbs |
|
