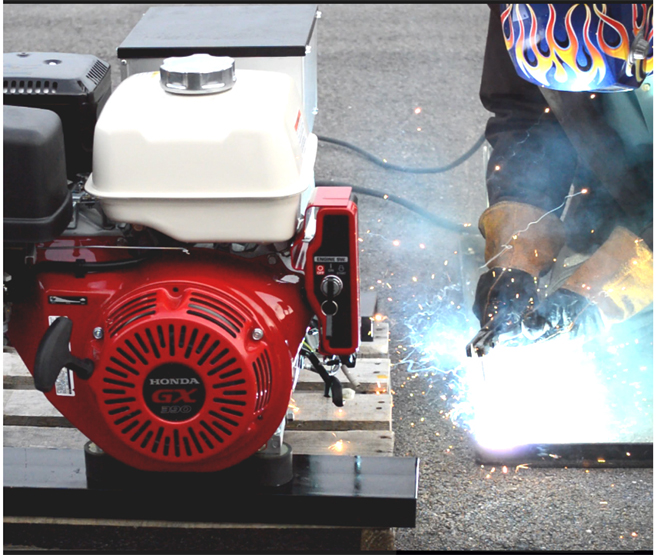

  Honda Gas Engine Drive Welder + Generator - This welder's simple, compact design allows for easy installation in a variety of applications requiring a small footprint and can be anchored to your truck or trailer or operated free standing.

Honda Gas Drive
Welder + Generator

Weld 3/8" steel + 120/240 V AC output.

This unit features an 9 HP Honda GX 270 engine, brushless welder generator, muffler, oil pressure shutdown, large capacity automotive style air cleaner, amperage selector switch (40 - 200 amps), receptacle panel with 120 V and 240 V outlets, welded steel skid frame, vibration isolator mounts, battery cables, 2 year warranty and electric start.




Options   Price
Welding Cables + $129






Generator
Rated Output 150 Amps
Output Range 40-150 Amps
Voltage 21 - 29 V
Duty Cycle 35% at 200 A
60% at 160 A
Power Single Phase MLS4-Y
Load Amperage at 120 volts ---
Maximum Load 46 Amps
Continous Load 42 Amps
Load Amperage at 240 volts ---
Maximum Load 23 Amps
Continous Load 21 Amps
Sound Level 74 dB(A)




Engine
Model Honda GX 270
Type 4 Stroke, OHV
Horsepower 9 HP
Oil Capacity Approx. 1.16 qts
Lubrication System Splash
Air Cleaner Dual Element
Cylinder Block Aluminum w/ Cast Iron Sleeves
Bore & Stroke 3.03" x 2.28"
Exhaust Outlet 1" OD Muffler
Fuel Gasoline
Starting System Electric





Engine
Consumption at 1/2 load 0.44 gallons/hour
Consumption at 3/4 load 0.59 gallons/hour
Consumption at full load 0.68 gallons/hour
Fuel Tank Capacity 1.6 gallons/hour

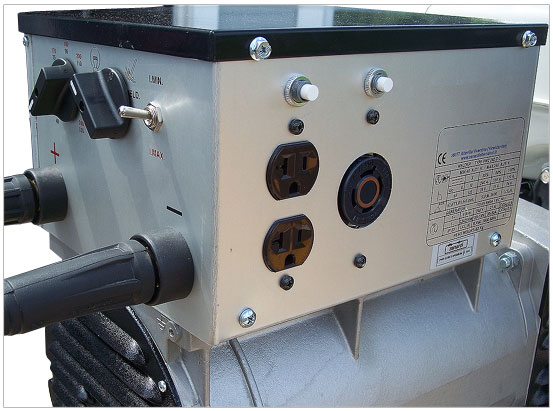

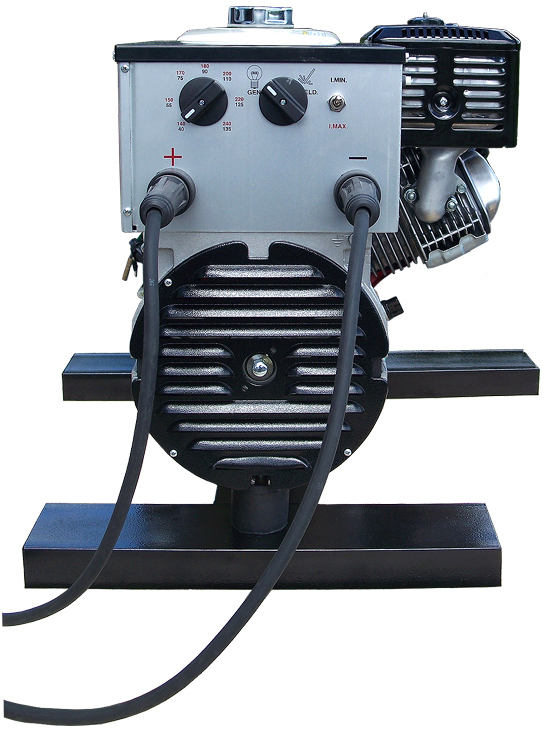

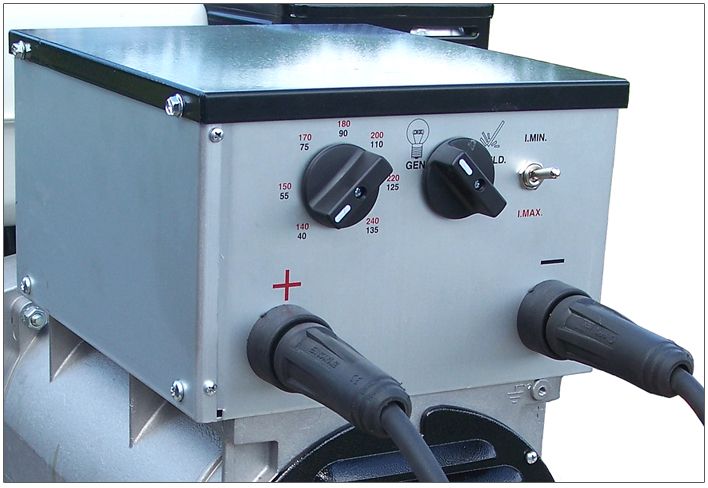

Power Output Panel
Amp Selector Switch 40 - 200A
Welder/Generator Switch Standard
Welding Cable Socket Standard




Power Output Panel
Circuit Breaker 20 Amp - Resetable
120 V Duplex NEMA#5-20R Standard
120 V Duplex NEMA#5-20R Standard
Circuit Breaker 20 Amp - Resetable
120/240 V Twistlock NEMA#L14-30R 1-30 Amp



Installation Data
Minimum Power Lead Size 0-50 Feet: 6 AWG
51-100 Feet: No. 4 AWG
No. Power Lead Conductors 4
Exhaust Outlet 1" OD Muffler Outlet
Battery Type 12 VDC - 300 CCA
Engine Oil Type 10W-30
Exhaust Location & Direction
(Facing Engine)
Left-side
Service Points
(Facing Engine)
Oil Fill Cap: Left-Side
Oil Filter: Left-Side
Fuel Inlet: Right-Side
Power Output: Back-Side
Control Panel: Back-Side
Air Filter: Front-Side



Maintenance Schedule
Replace Air Filter 300 Hours / 12 months
Replace Spark Plug 300 Hours / 12 months
Exercise Generator Under Load Once each month
Change Oil 100 hours / 6 months



Warranty
Engine Warranty 2 Years
Generator Warranty 2 Years
100% Coverage for Parts & Labor Standard




Dimensions
Length 27-1/4"
Width 19-1/4"
Height 20-3/4"
Dry weight 185 lbs
