Central Maine Diesel Inc. (“CMD”) is not affiliated with, sponsored by or otherwise associated with American Honda Motor Company, Inc. (“American Honda”). We purchase genuine Honda® engines and assemble the generator. Honda® is a registered trademark of American Honda.

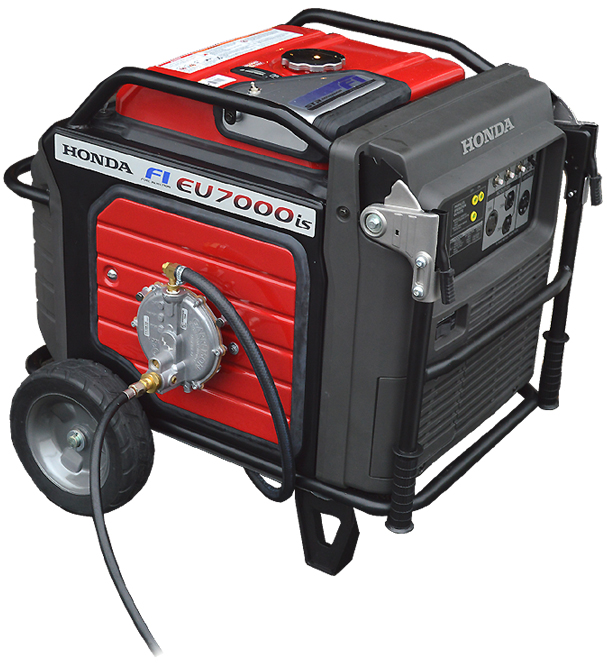

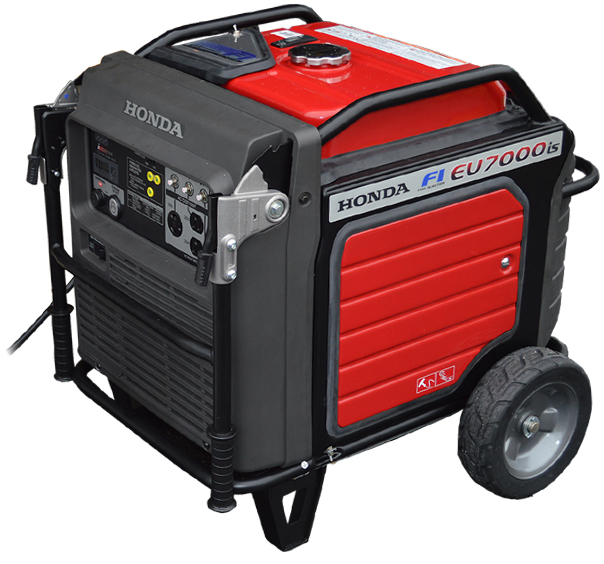

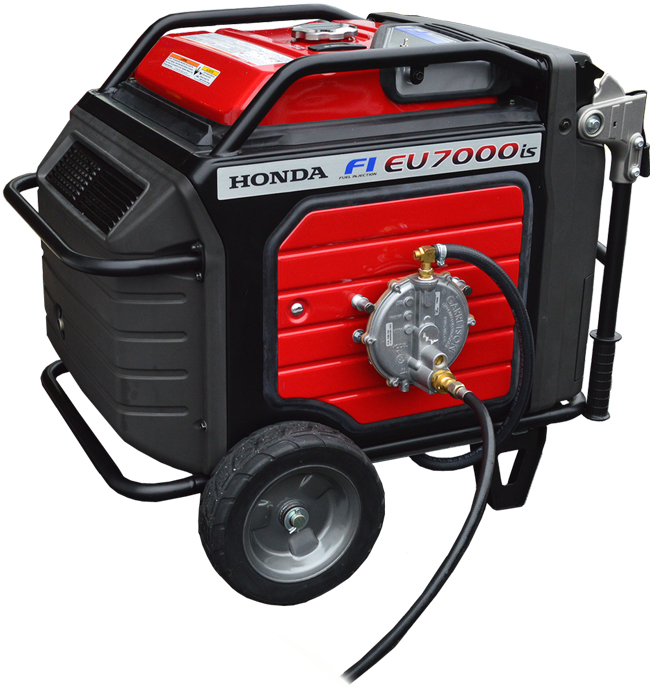

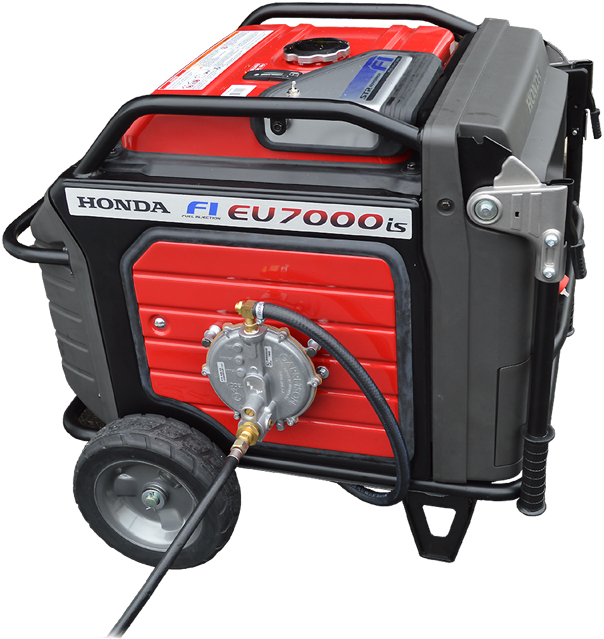

Propane Fueled Model: Honda EU7000iS




  Inverter Generator w/ Genconnex Propane System
Model: Honda EU7000iS
-
This generator operates on propane and natural gas right out of the box.

Fully enclosed, triple chamber design makes this generator even quieter then common speech at rated load.

This unit features a sine wave equal to or better than the current from your household AC wall outlet and will automatically adjusts engine speed for better fuel economy and even quieter operation. This unit features an LCD display screen for hours of operation, wattage, engine speed and diagnostics, low oil alert shutdown, wheel kit w/ folding handles, one-touch push button electric start and a sound level of only 60 decibels!




Options   Price
Low Pressure Regulator w/ 5' Hose + $125
Storage Cover + $49
Two-Wire Auto Start + $799






Generator
Maximum Output 7,000 Watts
Continous Output 5,500 Watts
Load Amperage at 120 V
Maximum Load 58 Amps
Continous Load 45.8 Amps
Load Amperage at 240 V
Maximum Load 29 Amps
Continous Load 22.9 Amps




Engine
Model Honda GX 390
Type Four Stroke, Single Cylinder
Oil Capacity Approx. 1.63 qts
Cylinder Block Aluminum w/ Cast Iron Sleeves
Low Oil Shutdown Standard
Exhaust Outlet 1/2" OD Muffler
Auto Throttle Standard
Fuel Gas, Propane & Natural Gas
Starting System Electric




Consumption
Consumption at 1/2 load 0.52 gallons/hour
Consumption at 3/4 load 0.79 gallons/hour
Consumption at full load 0.85 gallons/hour
Fuel Tank Capacity 5.1 gallons
Running time 1/4 load 18 hours

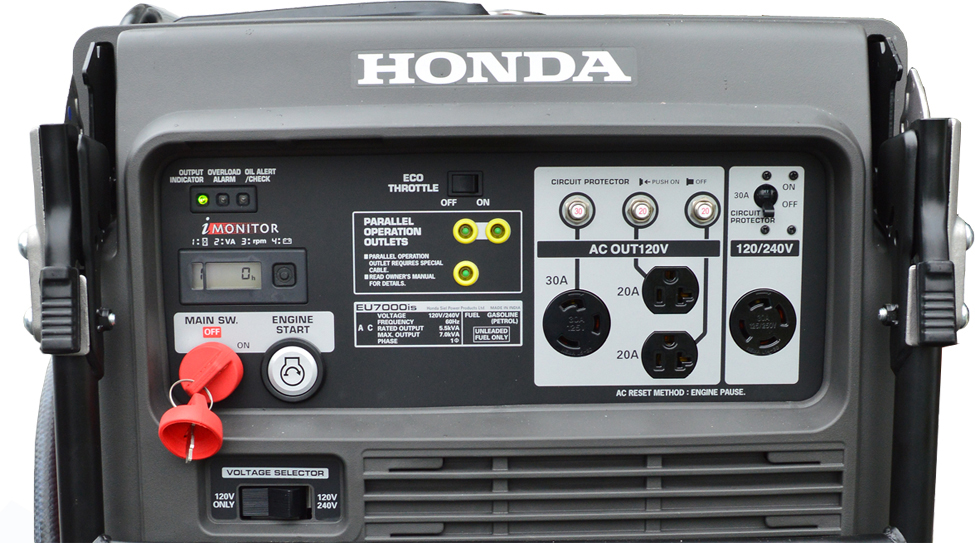

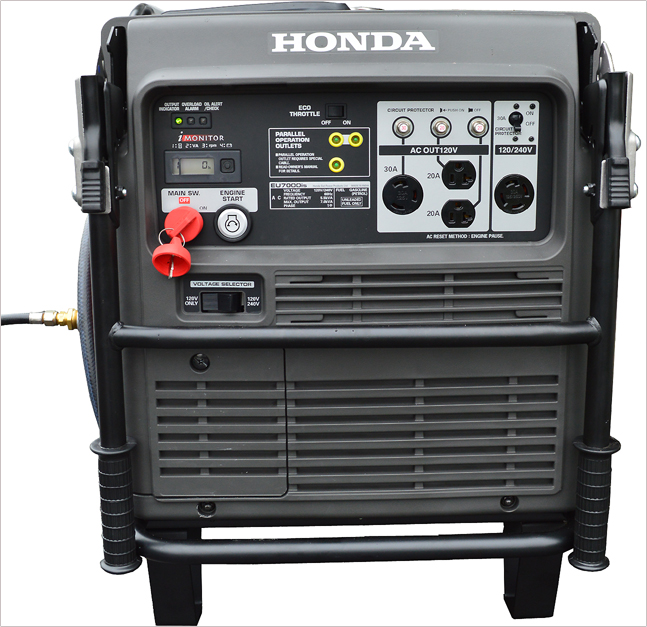

Power Output Panel
A. Output Indicator Standard
B. Overlload Alarm Standard
C. Oil Alert Indicator Standard
D. i-Monitor LED Display - Hour Meter
- Wattage Output
- Engine Speed
- Diagnostics
E. On / Off Switch Standard
F. Push-Button Start Standard
G. Voltage Selector 120 V & 120/240 V
H. Eco-Throttle Standard
I. Voltage Selector Switch Standard
J. Parallel Outlets Standard
K. 120 V Twistlock NEMA #L5-30R 1-30 Amp
L. 120 V Duplex NEMA 5-20R 2-20 Amp
M. 120/240 V Twistlock NEMA L14-30R 1-30 Amp




Installation Data
Fuel Inlet Fitting Size 3/4" FNPT
Recommended Fuel Hose Size 3/8"
Fuel Inlet Pressure LP Gas: 11-14" Water Column
Nat. Gas: 5-7" Water Column
Exhaust Outlet 1/2" OD Muffler
Exhaust Location & Direction Back-Side
Service Points
(Facing Control Panel)
Oil Fill: Left-Side
Air-Filter: Left-Side
Spark Plug: Left-Side
Power Output: Front-Side
Fuel Regulator: Left-Side
Battery: Front-Side
Minimum Cord Size 0-50 Feet: 10 AWG
51-100 Feet: 8 AWG
101-150 Feet: 6 AWG
Engine Oil Type SAE 10W-30
Oil Capacity 1.63 Quarts



Maintenance Schedule
Replace Air Filter 500 hours / 12 months
Replace Spark Plug 500 hours / 12 months
Exercise Generator Under Load Once each month
Change Oil 500 hours / 12 months



Warranty
Engine 2 Years
Generator 2 Years
100% Coverage for Parts & Labor Standard




Dimensions
Length 33.3"
Width 27.6"
Height 28.4"
Weight 262 lbs
