Current lead times are 1 week.
|
|
Central Maine Diesel Inc. (“CMD”) is not affiliated with, sponsored by or otherwise associated with American Honda Motor Company, Inc. (“American Honda”). We purchase genuine Honda® engines and assemble the generator. Honda® is a registered trademark of American Honda.
|
|
|
5,000 Watt Gasoline Generator with Electric Start - This gasoline generator is suitable for standby power or emergency use and has plenty of power to run your home, job site or business. The generator's simple, compact design allows for easy installation in a variety of applications requiring a small footprint and can be anchored to a concrete pad or operated free standing.

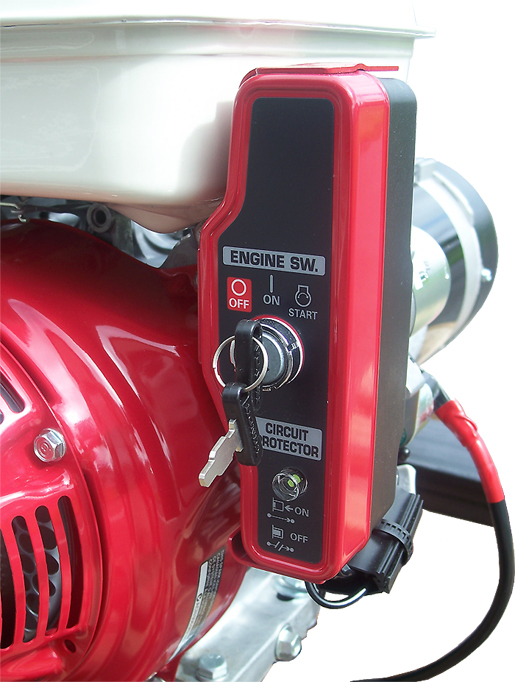

Electric start.
Turn a key just like you start your car.

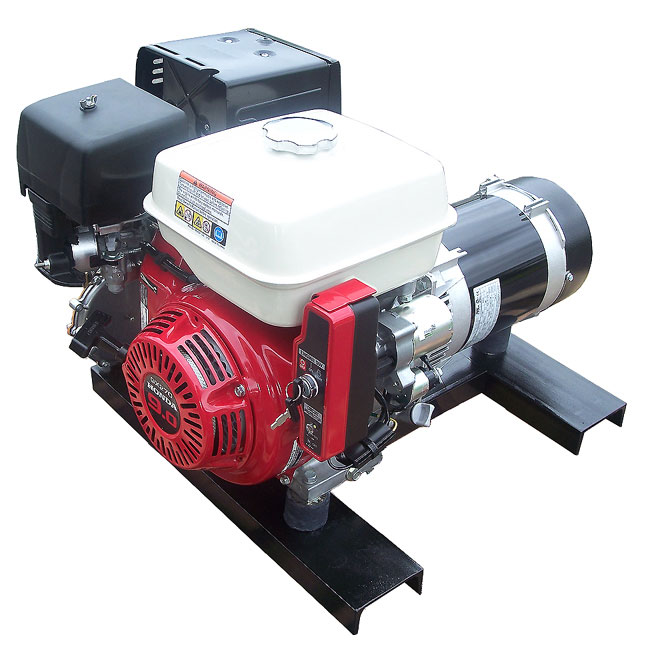

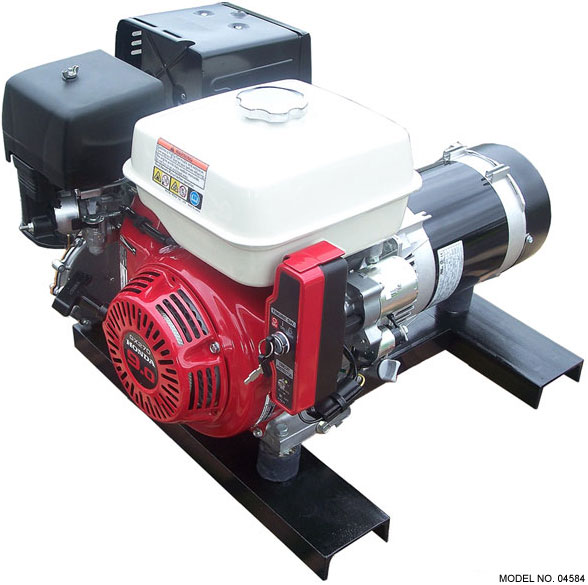

This unit features an Honda GX 270 gasoline engine, brushless generator, residential grade muffler, low oil pressure shutdown, large capacity automotive style air cleaner, receptacle panel with 120 V and 240 V outlets, welded steel skid frame, vibration isolator mounts, battery cables, 2 year warranty and electric start.
|
Generator
| Maximum Output |
5,500 watts |
| Continous Output |
5,000 watts |
| Power One-Phase |
MLS4-Y |
| Load Amperage at 120 volts |
--- |
| Maximum Load |
46 Amps |
| Continous Load |
42 Amps |
| Load Amperage at 240 volts |
--- |
| Maximum Load |
23 Amps |
| Continous Load |
21 Amps |
| Sound Level |
72 dB(A) |
|

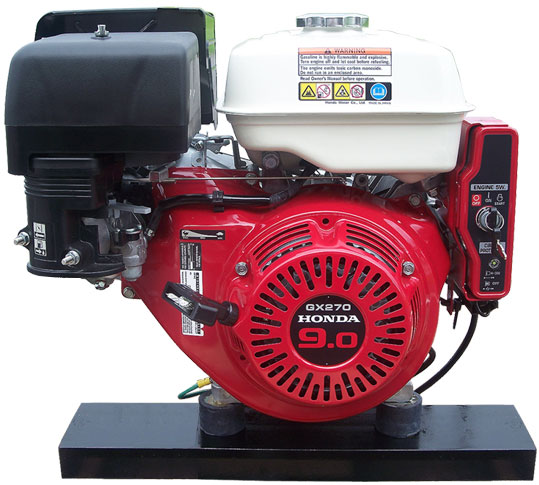

Engine
| Model |
Honda GX 270 |
| Type |
4 Stroke, OHV |
| Displacement |
270 cc |
| Oil Capacity |
Approx. 1.16 qts |
| Cylinder Block |
Aluminum w/ Cast Iron Sleeves |
| Bore & Stroke |
3.03" x 2.28" |
| Exhaust Outlet |
1" OD Muffler |
| Fuel |
Gasoline |
| Starting System |
Electric |
|
Consumption
| Consumption at 1/2 load |
0.44 gallons/hour |
| Consumption at 3/4 load |
0.59 gallons/hour |
| Consumption at full load |
0.68 gallons/hour |
|

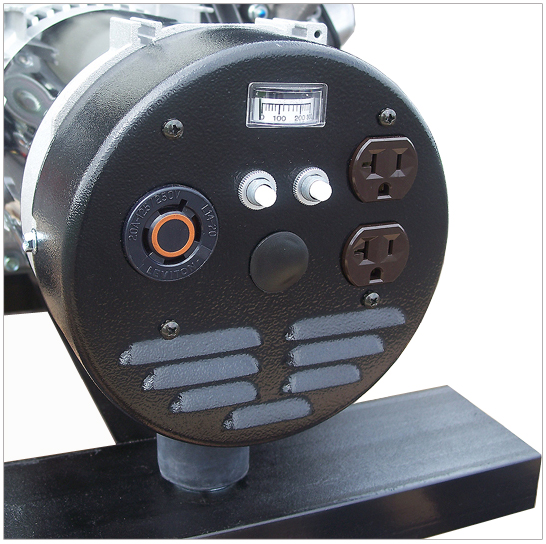

Power Output Panel
| 120/240 V Twistlock NEMA#L14-20R |
1-20 Amp |
| 120 V Duplex NEMA#5-20R |
2-20 Amp |
|
|
Installation Data
| Minimum Power Lead Size |
0-50 Feet: 10 AWG
51-100 Feet: 8 AWG |
| No. Power Lead Conductors |
4 |
| Exhaust Outlet |
1" OD Muffler Outlet |
| Engine Oil Type |
10W-30 |
Exhaust Location & Direction
(Facing Engine) |
Left-side |
Service Points
(Facing Engine) |
Oil Fill Cap: Right-Side
Fuel Inlet: Left-Side
Power Output: Back-Side
Control Panel: Front-Side
Air Filter: Front-Side |
|
Maintenance Schedule
| Replace Air Filter |
300 Hours / 12 months |
| Replace Spark Plug |
300 Hours / 12 months |
| Exercise Generator Under Load |
Once each month |
| Change Oil |
100 hours / 6 months |
Warranty
| Engine Warranty |
2 Years |
| Generator Warranty |
2 Years |
| 100% Coverage for Parts & Labor |
Standard |
|
Installation Data
| Length |
26" |
| Width |
19" |
| Height |
19-3/4" |
| Weight |
185 lbs |
|
|
