Current lead times are 1 week.

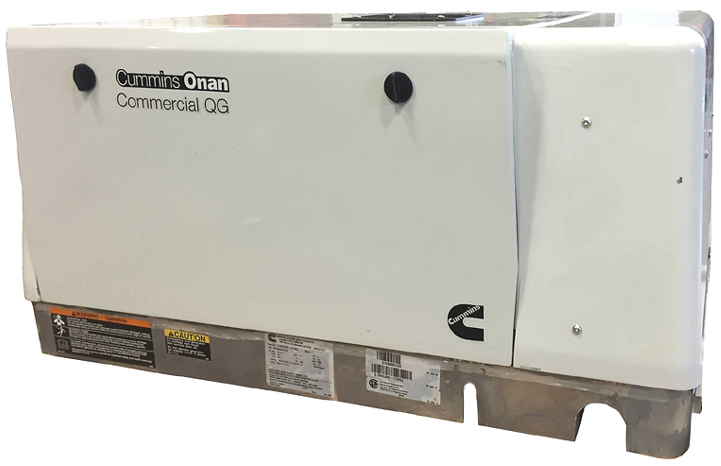

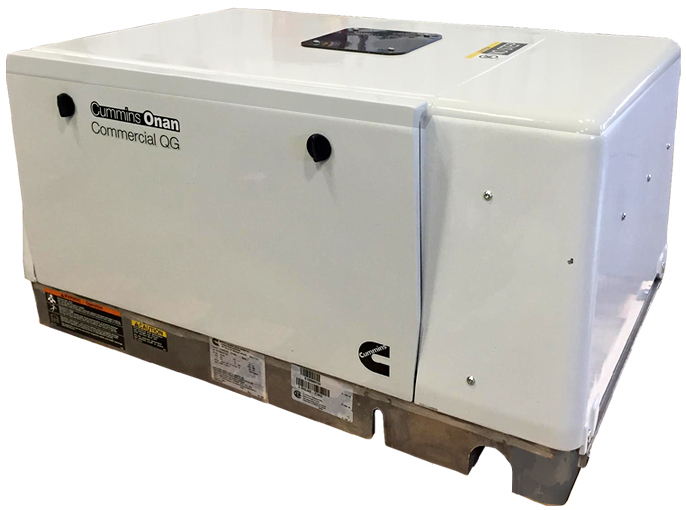

Cummins Onan Quiet Propane Series RV QG 5500 RV Generator Set - This brand new Cummins Onan QG5500 RV propane generator is fully enclosed and provides exceptionally smooth, quiet operation.

Full Power Output @ 120 V
Starts and runs one or two 13500 BTU air conditioner with power to spare.

This unit features a premium V-Twin engine in the Cummins Onan EH65V. This generator is equipped with a digital voltage regulator, electric fuel solenoid, USDA-approved spark arresting muffler, electric start and a 3-year warranty.

CUMMINS ONAN
REMOTE START PANEL


Options   Price
Remote Start Panel w/ Hour Meter + $75
Underfloor Mount Kit + $195







.
Generator
Automatic Voltage Regulator Voltage Stability +/- 2%
Frequency +/- 2%
Power Single-Phase
Continuous Output 5,500 Watts
Load Amperage at 120 V
Continuous Load 45.8 amps
Circuit Breaker 30 Amp - 1 Pole
20 Amp - 1 Pole



.
Engine
Type Cummins Onan EH65V
Design V-Twin
Displacement 652 cc
Oil Capacity Approx. 2.0 Qts
Exhaust Outlet 1 1/4" OD Muffler Outlet
Cooling System Air-cooled
Fuel Propane
Electric Fuel Solenoid Standard
Starting System Electric






Consumption
Consumption at No load 0.4 GPH
Consumption at 3/4 load 0.8 GPH
Consumption at full load 1.1 GPH



Installation Data
Fuel Inlet Hose Size 3/8"
Fuel Fitting 3/8" FNPT
Fuel Inlet Pressure LP Gas: 11"-14" Water Column
Exhaust Outlet 1 1/4" OD Muffler
Exhaust Location & Direction
(Service Door)
Front-Side
Service Points
(Facing Door)
Oil Fill: Front-Side
Oil Filter: Front-Side
Air Filter: Front-Side
Spark Plug: Front-Side
Fuel Inlet: Right-Side
Power Output Location
(Facing Service-Side)
Left-Side
Battery 12 VDC
Engine Oil Type 10W-30




Warranty
Engine Warranty 3 Years
Generator Warranty 3 Years
100% Coverage for Parts & Labor Standard




Dimensions
Length 33.6"
Width 22.2"
Height 16.7"
Weight 279 lbs
