Cummins 125kW Diesel Generator

EMERGENCY STANDBY APPLICATIONS ONLY

Generator applications that ONLY operate upon the loss of a normal power source such as utility.

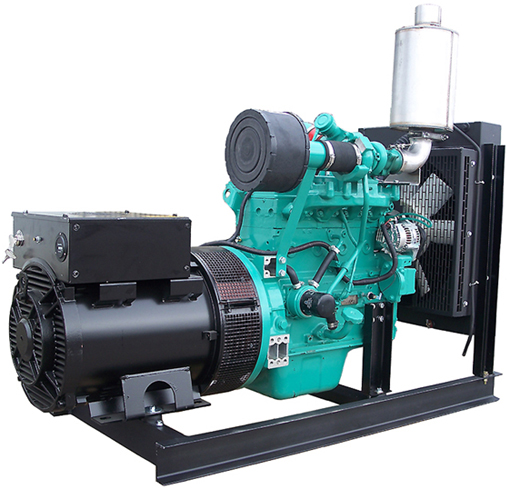

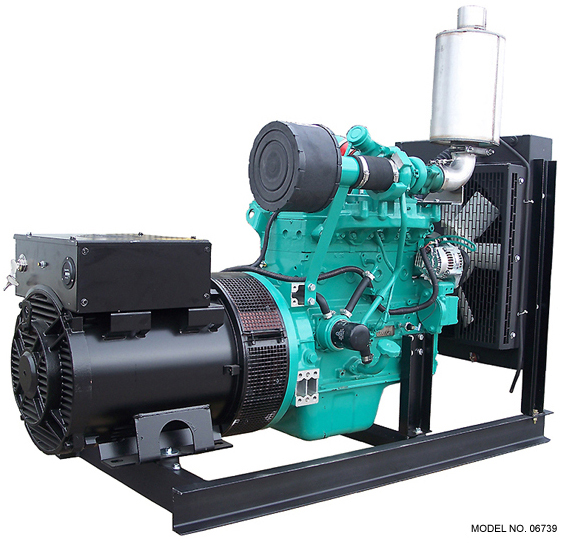

Central Maine Diesel CP125 Cummins Powered 125 kW Diesel Generator - This Cummins Powered diesel generator is suitable for continous use and has plenty of power to your home, job site or business. This unit operates at 1800 RPM and with its deep stiff crankcase, isolated valve cover and 4 point vibration mounts, this set runs smooth and quiet.

Prime Power.
Built to run 24 hours a day.

This unit features a Cummins 4.5L in-line 4-cylinder turbocharged diesel engine, direct injection, cast iron crankcase with replaceable wet-type cylinder liners, full flow lube oil filteration, spin-on fuel filter with water seperator, brushless generator end (fan-cooled), solid state automatic voltage regulator for powering sensitive electronics, electronic fuel controller, extended 500-hour oil change and filter interval, single-side service points, liquid cooling, replaceable foam air filter element, heavy steel skid base, muffler for quiet operation, turn-key start and hour meter.

Options	Price
Sound Enclosure	+ $4795
250 Gallon Fuel Tank	+ $2875
Double-Axle Trailer	+ $3695

Generator

Automatic Voltage Regulation			Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer?			Yes - 1% regulation from no load to full load.
Power Single-Phase			---
Maximum Output			125,000 watts
Continous Output			124,000 watts
Load Amperage at 120 volts			---
Maximum Load			1,041 Amps
Continous Load			1,033 Amps
Load Amperage at 240 volts			---
Maximum Load			521 Amps
Continous Load			516 Amps

Engine

Model			Cummins QSB5-G3
Type			Direct Injection
Oil Capacity (w/ Oil Filter)			12 qts.
Operating RPM			1800
Cylinders			4
Cylinder Block			Cast Iron Block w/ Cast Iron Sleeve
Bore & Stroke			4.21" x 4.88"
Exhaust Outlet			3" OD Muffler Outlet
Governor			Electronic Governor
Cooling			Liquid-Cooling
Coolant Capacity			Approx. 6.5 Qts
Fuel			No. 2 Diesel
Electric Fuel Pump			12 V - Standard
Starting System			Electric

Consumption

Consumption at 1/2 load			4.3 gallons/hour
Consumption at 3/4 load			6.4 gallons/hour
Consumption at full load			7.7 gallons/hour

Control Panel

Key Start			Standard
Hour Meter			Standard
Circuit Breaker			10 Amps - Resetable

Installation Data

Fuel Inlet Hose Size			5/8"
Fuel Return Hose Size			1/2"
Minimum Power Lead Size			3/0 AWG
No. Power Lead Conductors			4
Exhaust Outlet			3" OD Muffler Outlet
Coolant Recommendation			Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions (L x D x H)			29-3/4" x 14" x 28"
Fuel Inlet & Return Location (Facing Radiator)			Left-Side
Exhaust Direction (Facing Radiator)			Left-Side
Power Output Location (Facing Radiator)			Back-Side
Service Points (Facing Radiator)			Oil Fill: Left-Side Oil Drain:Left-Side Air Filter: Left-Side Oil Filter: Left-Side Fuel Filter: Left-Side
Battery Type			12 VDC - 800 CCA - Not Included
Engine Oil Type			SAE 15W-40

Warranty

Worldwide Support Network			4,000 Service Locations
Engine Warranty			2 Years
Generator Warranty			1 Year
100% Coverage for Parts & Labor			Standard

Dimensions

Length			98 inches
Width			37 inches
Height			64 inches
Dry weight			2450 lbs
