Current lead times are 2 business days.
|
|
Central Maine Diesel Inc. (“CMD”) is not affiliated with, sponsored by or otherwise associated with American Honda Motor Company, Inc. (“American Honda”). We purchase generators with genuine Honda® engines and modify them with CMD’s Triple Fuel System to operate on LP Gas, Natural Gas and Gasoline. CMD’s Triple Fuel System is not approved by American Honda. Honda® is a registered trademark of American Honda.
|
|
|

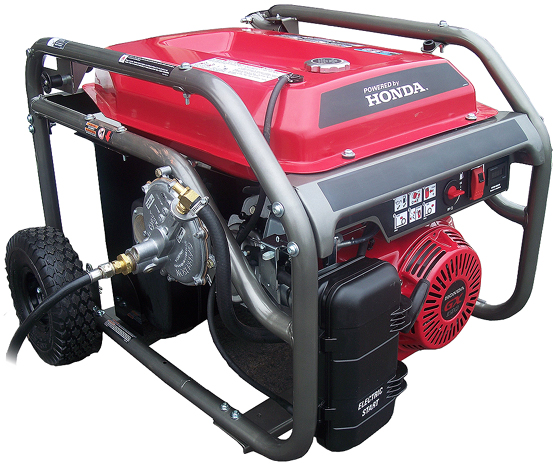

Honda Powered 8,750 Watt Gasoline Generator w/ Electric Start - This brand new Industrial Portable generator features an 8,750 watt surge rating and is designed for general use by the professional. This unit is designed for heavy duty service on the job site or as temporary stand-by-power. Electric start.

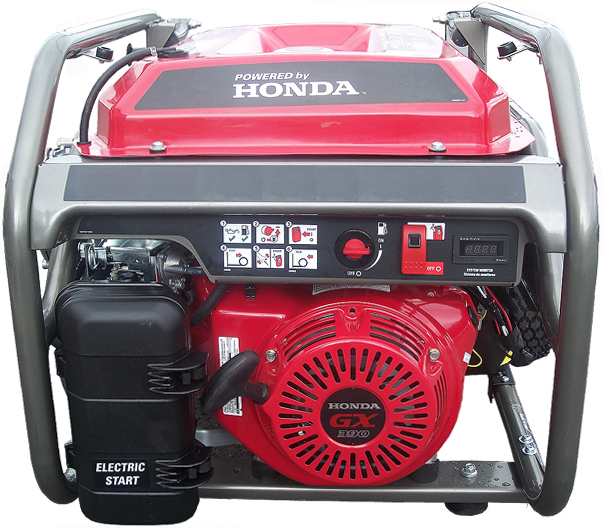

Turn a key just like you start your car. This brand new unit features a premium 13 HP Honda GX 390 OHV engine w/ a cast-iron cylinder sleeve and electric start. This genset is equipped with a "computer safe" generator, automatic voltage regulation, large fuel tank w/ fuel gauge, turn-key start/stop, muffler, rugged all-terrain wheel kit w/ rubber tires & dual folding handles, low oil pressure shutdown, 12 VDC battery and control panel with voltage gauge, frequency gauge, hour meter and electric start.
|
|
. |
Generator
| Automatic Voltage Regulation |
Standard |
| Is this unit suitable for powering sensitive electronic equipment like a laptop computer? |
Yes - 1% regulation from no load to full load. |
| Power Single-Phase |
--- |
| Maximum Output |
8,750 watts |
| Continous Output |
7,000 watts |
| Load Amperage at 120 volts |
--- |
| Maximum Load |
73 Amps |
| Continous Load |
58 Amps |
| Load Amperage at 240 volts |
--- |
| Maximum Load |
36.5 Amps |
| Continous Load |
29 Amps |
| Sound Level @ 23 ft(7 m) at full load |
73 dB(A) |
|
|
. |
Engine
| Type |
Honda GX 390 |
| Power |
13 HP |
| Oil Capacity |
Approx. 1.2 Qts |
| Oil Alert Shutdown |
Standard |
| Cylinder Block |
Aluminum w/ Cast Iron Sleeve |
| Displacement |
389 cc |
| Bore & Stroke |
3.46" x 2.52" |
| Exhaust Outlet |
1 3/4" OD Muffler Outlet |
| Cooling System |
Air-cooled |
| Air Cleaner |
Dual Element Type |
| Fuel |
Gasoline |
| Starting System |
Electric |
|
Consumption
| Consumption at 1/2 load |
0.625 gallons/hour |
| Consumption at 3/4 load |
0.72 gallons/hour |
| Consumption at full load load |
0.89 gallons/hour |
| Fuel Tank Capacity |
6 Gallons - Fuel Gauge Included |

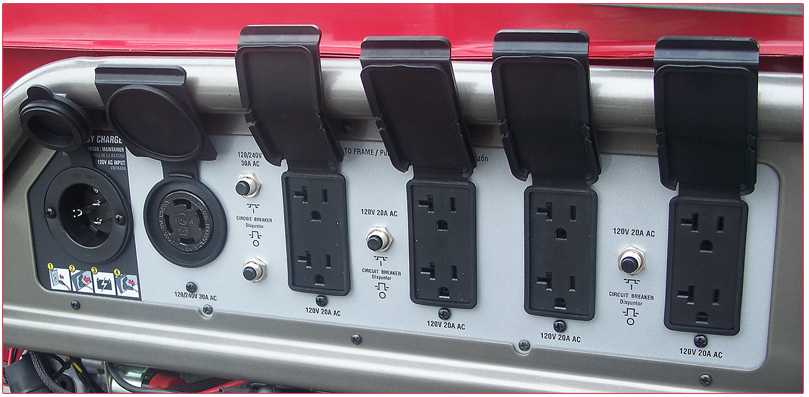

Power Output Panel
| A. Hour Meter |
Standard |
| B. On/Off Key Switch |
Standard |
| C. 120 V Duplex NEMA#5-20R |
Standard |
| D. 120 V Duplex NEMA#5-20R |
Standard |
| E. Circuit Breaker |
20 Amp - Resetable |
| F. Circuit Breaker |
20 Amp - Resetable |
| G. 120 V Duplex NEMA#5-20R |
Standard |
| H. 120 V Duplex NEMA#5-20R |
Standard |
| I. Circuit Breaker |
20 Amp - Resetable |
| J. Circuit Breaker |
20 Amp - Resetable |
| K. 120/240 V Twistlock NEMA#L14-30R |
1-30 Amp |
| L. CordKeeper® |
Standard |
| M. CordKeeper® |
Standard |
Installation Data
| Exhaust Outlet |
1 3/4" OD Muffler Outlet |
Exhaust Location & Direction
(Facing Engine) |
Left-Side |
Service Points
(Facing Engine) |
Oil Fill: Right-Side
Air Filter: Front-Side
Spark Plug: Left-Side
Power Output: Right-Side
Fuel Regulator: Left-Side |
| Minimum Cord Size |
0-50 Feet: 10 AWG
51-100 Feet: 8 AWG
101-150 Feet: 6 AWG |
| Engine Oil Type |
10W-30 |
| Oil Capacity |
Approx. 1.2 Quarts |
| Battery Type - Included! |
12 VDC - 300 CCA |
Warranty
|
American Honda Motor Company, Inc. makes no warranties about this product. All warranties for generators modified with CMD's Triple Fuel System are made solely and exclusively by Central Maine Diesel.
|
| Engine Warranty |
2 Years |
| Generator Warranty |
2 Years |
| 100% Coverage for Parts & Labor |
Standard |
Dimensions
| Length |
31.25" |
| Width |
28" |
| Height |
26" |
| Weight |
222 lbs |
|
