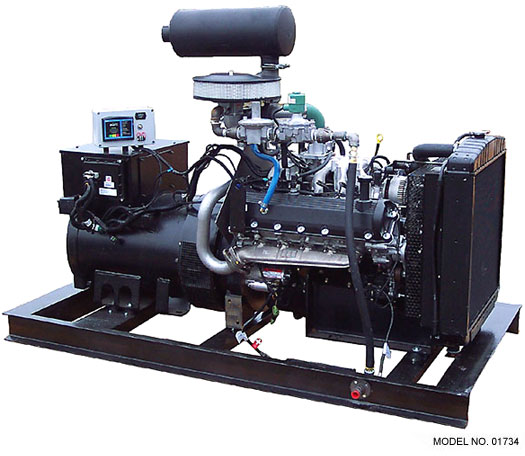

Ford 80 kW Propane/Natural Gas Generator
Ford Industrial 80 kW
Ford Powered 80 kW LP/Natural Gas Generator - This brawny, 1800 RPM LP/Natural Gas set has plenty of power to run your house, business or off-the-grid hunting cabin. This unit includes a V-10 Ford WSG1068 6.8L 10 cylinder inline engine, electronic governor (0.5% frequency control), electronic ignition control module, cast iron crankcase with reborable liners, cool flow radiators, residential grade muffler, welded steel skid base, vibration isolators for smooth operation, brushless generator, automatic voltage regulation and control panel with turn-key start and hour meter.
Model Number
01734
Electrical Specifications
-
Power Single-Phase ---
Automatic Voltage Regulation Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes
Maximum Output 85,000 watts
Continous Output 80,000 watts
Load Amperage at 120 volts ---
Maximum Load 708 Amps
Continous Load 667 Amps
Load Amperage at 240 volts ---
Maximum Load 354 Amps
Continous Load 334 Amps
Derate 10% for Natural Gas
Model Number
01734
Engine
-
Type Ford Industrial WSG1068
Cylinders V-10
Operating RPM 1800 RPM
Cylinder Block Cast Iron Block w/ Cast Iron Sleeve
Bore & Stroke 3.55" x 4.17"
Displacement 6.8 Liters
Air Cleaner Heavy Duty Replaceable Dry Element
Oil Capacity (w/ Oil Filter) 6.7 qts.
Exhaust Outlet 2" OD Muffler Outlet
Governor Electronic Governor
Frequency Control +/- 0.5%
Coolant Capacity Approx. 6.5 Qts
Battery Charging Alternator Standard - 90 Amps
Fuel LP/Natural Gas
Starting System Electric
Model Number
01734
Consumption
cu.ft./hr
Consumption at 1/2 load LP Gas: 8.1 gal/hr
Consumption at 3/4 load LP Gas: 8.7 gal/hr
Consumption at full load LP Gas: 9.9 gal/hr
Model Number
01734
Control Panel
-
Key Start Standard
Hourmeter Standard
Circuit Breaker 10 Amps - Resetable
Model Number 01734
Control Panel
1. Radiator Fill
2. Oil Filler Cap
3. Fuel Inlet Fitting
4. Battery Tray
5. Air Filter
6. Spark Plugs
7. Oil Dipstick
8. Oil Filter
9. Muffler
10. Generator
11. AC Power Output Cover
12. Control Panel Cover
Model Number
01734
Installation Data
-
Fuel Supply Inlet 3/4" NPT
Fuel Supply Pressure Nat.Gas: 11-14" Water Column
Recommended Hose Size 1/2"
BTU Content 975,000 BTUs
No. Power Lead Conductors 4
Exhaust Outlet 2" OD Muffler Outlet
Coolant Recommendation Mixture: 1/2 Anti-Freeze & 1/2 Water
Battery Type 12 VDC - 575 CCA - NOT INCLUDED
Engine Oil Type 10W-30 Synthetic
Service Points
-
1. Control PanelLeft-Side
2. Air CleanerLeft-Side
3. MufflerLeft-Side
4. Radiator FillFront-Side
5. Battery RackLeft-Side
6. Fuel Inlet FittingLeft-Side
7. Oil FillLeft-Side
8. Oil FilterRight-Side
Model Number
01734
Warranty
-
Engine Warranty 1 Year
Generator Warranty 1 Year
100% Coverage for Parts & Labor Standard
Model Number
01734
Dimensions
-
Length 82"
Width 43.5"
Height 57"
Dry weight 2410 lbs
